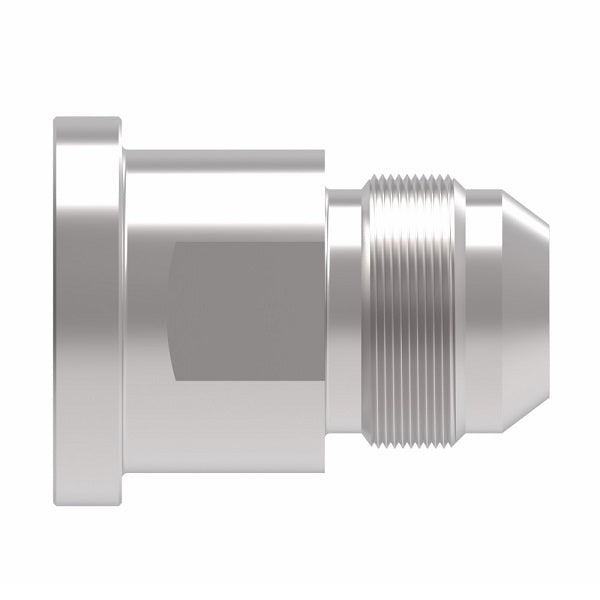

FF5541-1616S Aeroquip by Danfoss | Code 62 Split Flange/37° JIC Flare Adapter | Standard Pressure Series | -16 Code 62 Split Flange x -16 Male 37° JIC Flare | Steel

FF5541-1616S Aeroquip by Danfoss | Code 62 Split Flange/37° JIC Flare Adapter | Standard Pressure Series | -16 Code 62 Split Flange x -16 Male 37° JIC Flare | Steel

$39.86 - $39.86
$39.86
$39.86 - $39.86
$39.86

Aeroquip® by Danfoss
Code 62 Split Flange/37° JIC Flare Adapter
Code 62 Split Flange x Male 37° JIC Flare
Standard Pressure Series
Straight

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: FF5541-1616S Danfoss
Shape (Orientation): Straight
Ends Configuration: 1in Code 62 Flange, 1in Male JIC
Material(s): Steel
Note:
  • The performance rating of these adapters is the lower of the two terminal ends. These adapters are rated to JIC pressures as specified in SAE J514.
  • Mates with FC3425- size-449 flanges.
Part Number Steel Split Flange Size Tube O.D. Thread T A
FF5541-1212S 3/4" 0.75" 1-1/16-12 3.17"
FF5541-1616S 1" 1.00" 1-5/16-12 3.76"
FF5541-2016S 1-1/4" 1.00" 1-5/16-12 3.76"
FF5541-2020S 1-1/4" 1.25" 1-5/8-12 3.84"
FF5541-2416S 1-1/2" 1.00" 1-5/16-12 3.76"
FF5541-2420S 1-1/2" 1.25" 1-5/8-12 3.84"
FF5541-2424S 1-1/2" 1.50" 1-7/8-12 4.67"
