FF593-20 Aeroquip by Danfoss | SAE Code 61 Split Flange Kit (SAE J518) with Buna-N O-Ring | Complete Kit | 1-1/4" Flange Size | Steel

Name: FF593-20 Aeroquip by Danfoss | SAE Code 61 Split Flange Kit (SAE J518) with Buna-N O-Ring | Complete Kit | 1-1/4" Flange Size | Steel
Brand: Danfoss/Eaton
SKU: FF593-20 Danfoss
Price: 57.17 USD
Availability: InStock

$57.17 - $57.17

$57.17

$57.17 - $57.17

$57.17

Aeroquip® by Danfoss
SAE Code 61 Split Flange Kit (SAE J518) with Buna-N O-Ring (Complete Kit)

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FF593-20 Danfoss
Shape (Orientation):	No Orientation
Ends Configuration:	1-1/4in Code 61 Flange
Material(s):	Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Technical Info:
Crimp Fitting Socket Data.PDF
Specifications:
O-Rings material: Buna-N 90 Durometer Temperature range: -40°F to +250°F (-40°C to + 121°C)

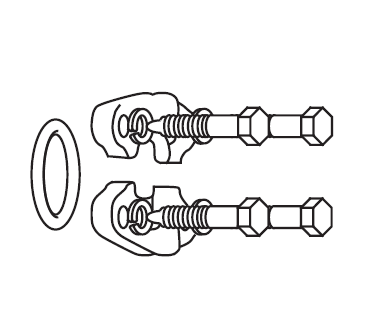

	Components Included in Complete Kit:
Complete Kit Part Number	Flange Halves (2 required) Part Number	Buna-N O-Ring (1 required) Part Number	Bolts (4 required) Part Number	Lock washer (4 required) Part Number	Nominal Flange Size	A	B	C	Bolt torque lb.-in
FF593-08	449-74446-8	FF9446-210	FF9442-0520-94	210104-5S	1/2"	1.50"	0.68"	0.34"	175-225
FF593-12	449-74446-12	FF9446-214	FF9442-0620-94	210104-6S	3/4"	1.88"	0.88"	0.41"	250-350
FF593-16	449-74446-16	FF9446-219	FF9442-0620-94	210104-2-6S	1"	2.06"	1.04"	0.41"	325-425
FF593-20	449-74446-20	FF9446-222	FF9442-0724-94	210104-7S	1-1/4"	2.31"	1.18"	0.48"	425-550
FF593-24	449-74446-24	FF9446-225	FF9442-0824-94	210104-8S	1-1/2"	2.75"	1.40"	0.53"	550-700
FF593-32	449-74446-32	FF9446-228	FF9442-0824-94	210104-8S	2"	3.06"	1.68"	0.53"	650-800
FF593-40	449-74446-40	FF9446-232	FF9442-0828-94	210104-8S	2-1/2"	3.50"	2.00"	0.53"	950-1100
FF593-48	449-74446-48	FF9446-237	FF9442-1028-94	210104-10S	3"	4.19"	2.44"	0.66"	1650-1800
