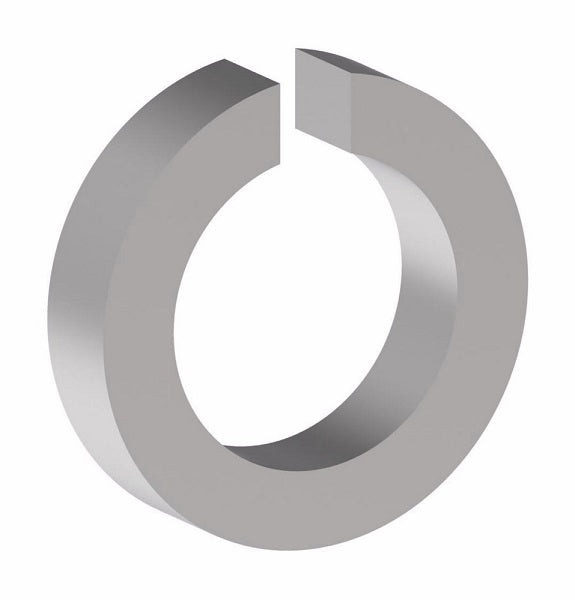

210104-7S Aeroquip by Danfoss | SAE Code 61/Code 62 Lock Washer (1 Washer) | for 1-1/4" Flange Size

210104-7S Aeroquip by Danfoss | SAE Code 61/Code 62 Lock Washer (1 Washer) | for 1-1/4" Flange Size

$1.22 - $1.22
$1.22
$1.22 - $1.22
$1.22

Aeroquip® by Danfoss
Lock Washer for SAE Code 61 Split Flange Kit (SAE J518)

Important: 4 Lock Washers are required for a complete assembly.
Flange lock washers are not sold as a pack of 4. If you require 4 lock washers, set the quantity below, to 4.

(Formerly Eaton Aeroquip)
Specifications for Variant SKU: 210104-7S Danfoss
Shape (Orientation): No Orientation
Material(s): Steel
Seal Material(s): Unknown
Technical Info:
Specifications:
  • Temperature range: -40°F to +250°F (-40°C to + 121°C)
Lock washer
(4 required)
Part Number 		Nominal
Flange Size		 A B C Bolt torque
lb.-in
210104-5S 1/2" 1.50" 0.68" 0.34" 175-225
210104-6S 3/4" 1.88" 0.88" 0.41" 250-350
210104-2-6S 1" 2.06" 1.04" 0.41" 325-425
210104-7S 1-1/4" 2.31" 1.18" 0.48" 425-550
210104-8S 1-1/2" 2.75" 1.40" 0.53" 550-700
210104-8S 2" 3.06" 1.68" 0.53" 650-800
210104-8S 2-1/2" 3.50" 2.00" 0.53" 950-1100
210104-10S 3" 4.19" 2.44" 0.66" 1650-1800
