FFX-04-04-SST by Kurt Hydraulics | Female O-Ring Face Seal | Swivel | PTFE Coupling | for 1/4" Hose ID

Name: FFX-04-04-SST by Kurt Hydraulics | Female O-Ring Face Seal | Swivel | PTFE Coupling | for 1/4" Hose ID
Brand: Kurt Hydraulics
SKU: FFX-04-04-SST Kurt
Price: 5.36 USD
Availability: InStock

Save $0.67

$6.03

$6.03 - $6.03

$6.03

$5.36

$5.36 - $5.36

$5.36

by Kurt Hydraulics
FFX-SST - O-Face Seal Female Swivel - PTFE Couplings

Kurt Fittings and Hose should only be used together.

Quantity

Specifications for Variant SKU: FFX-04-04-SST Kurt
Series:	FFX Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Hose Barb, 1/4in Female O-Ring Face Seal
Special Properties:	Swivel

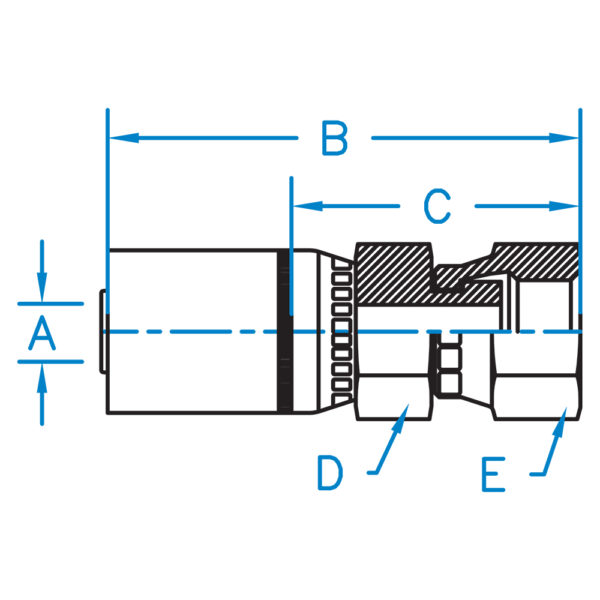

Part Number	A	B	C	D	E	Hose ID (In)	Thread
FFX-04-04-SST	0.250	2.597	1.517	9/16	11/16	1/4"	9/16-18
FFX-04-06-SST	0.250	2.652	1.517	5/8	11/16	1/4"	11/16-16
FFX-06-06-SST	0.375	2.920	1.608	3/4	13/16	3/8"	11/16-16
FFX-06-08-SST	0.375	3.216	1.720	7/8	15/16	3/8"	13/16-16
FFX-08-08-SST	0.500	3.285	1.720	7/8	15/16	1/2"	13/16-16
FFX-08-10-SST	0.500	3.285	1.720	7/8	15/16	1/2"	1-14
FFX-08-12-SST	0.500	3.352	1.954	1-1/8	1-3/8	1/2"	1-14
FFX-10-10-SST	0.625	3.285	1.720	7/8	15/16	5/8"	1-14
FFX-10-12-SST	0.625	3.710	1.954	1-1/8	1-3/8	5/8"	1-3/16-12
FFX-12-12-SST	0.750	3.710	1.954	1-1/8	1-3/8	3/4"	1-3/16-12
FFX-16-16-SST	1.000	4.360	2.110	1-3/8	1-5/8	1.000"	1-7/16-12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
