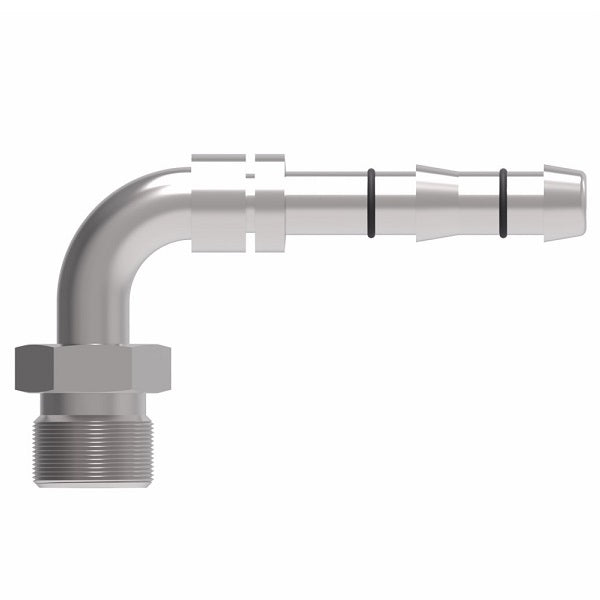

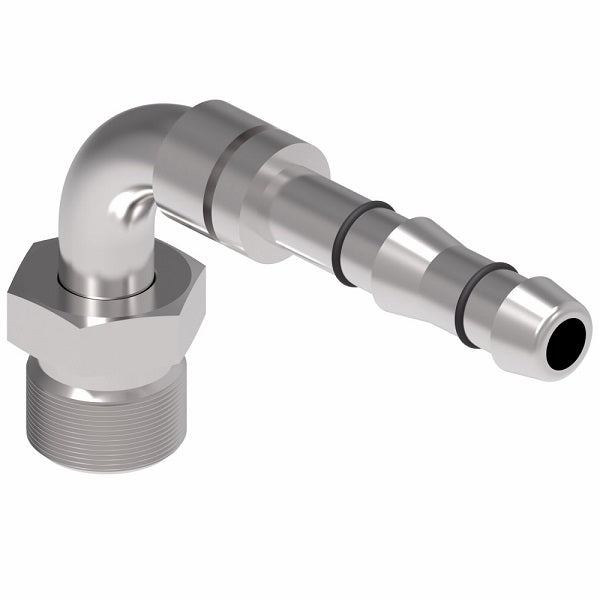

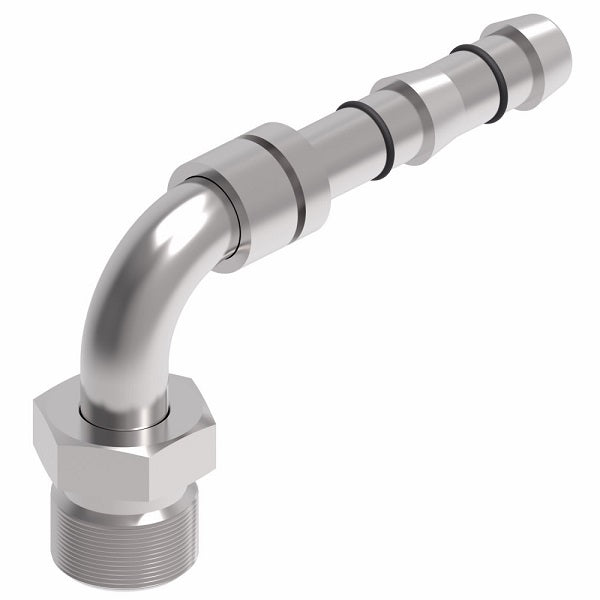

FJ3056-03-1010S E-Z Clip System by Danfoss | Male MIO (male insert O-Ring) 90° Elbow | A/C Refrigeration Fitting | -10 Male O-ring x -10 Hose Barb| Steel
FJ3056-03-1010S E-Z Clip System by Danfoss | Male MIO (Male Insert O-Ring) 90° Elbow | A/C Refrigeration Fitting | -10 Male MIO x -10 Hose Barb | Steel
FJ3056-03-1010S E-Z Clip System by Danfoss | Male MIO (Male Insert O-Ring) 90° Elbow | A/C Refrigeration Fitting | -10 Male MIO x -10 Hose Barb | Steel
FJ3056-03-1010S E-Z Clip System by Danfoss | Male MIO (male insert O-Ring) 90° Elbow | A/C Refrigeration Fitting | -10 Male O-ring x -10 Hose Barb| Steel

FJ3056-03-1010S E-Z Clip System by Danfoss | Male MIO (Male Insert O-Ring) 90° Elbow | A/C Refrigeration Fitting | -10 Male MIO x -10 Hose Barb | Steel

$48.16 - $48.16
$48.16
$48.16 - $48.16
$48.16

Danfoss A/C & Refrigeration
E-Z Clip System - Male MIO (Male Insert O-Ring) - 90° Elbow

O-Ring Not Included. Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.
Specifications for Variant SKU: FJ3056-03-1010S Danfoss
Brand: E-Z Clip
Shape (Orientation): 90 Degree
Ends Configuration: 5/8in Male MIO, 5/8in Hose Barb
Material(s): Steel
Compatible with the following Series: GH001 Series  |   GH134 Series
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. D Ref. H Ref. Ref.

 Clip & Cage Kit
(Required)		 O-Ring Options
Neoprene Green HNBR
FJ3056-01-0606S 5/8-18 -06 2.50" 0.98" 1.44" 0.69" FF14171 22546-11 FF90178-11
FJ3056-02-0808S 3/4-16 -08 2.74" 1.20" 1.82" 0.81" FF14172 22546-13 FF90178-13
FJ3056-03-1010S 7/8-14 -10 3.09" 1.54" 2.13" 0.94" FF14173 22546-15 FF90178-15
FJ3056-04-0810S 3/4-16 -10 2.75" 1.20" 1.82" 0.81" FF14173 22546-13 FF90178-13
