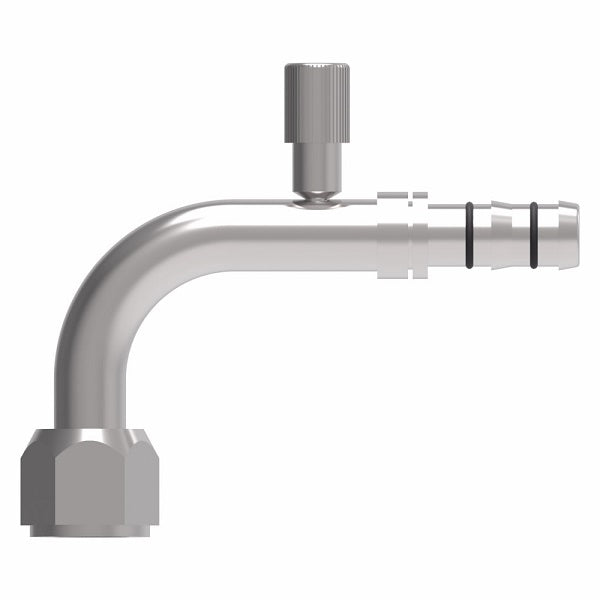

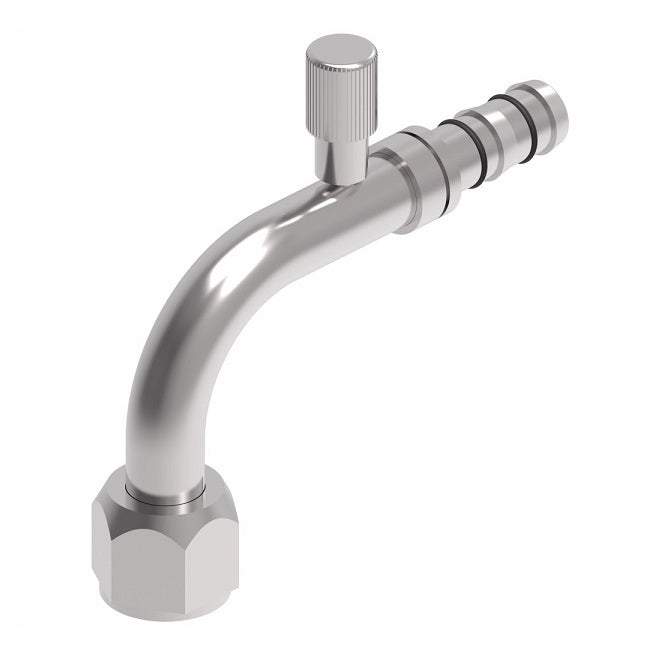

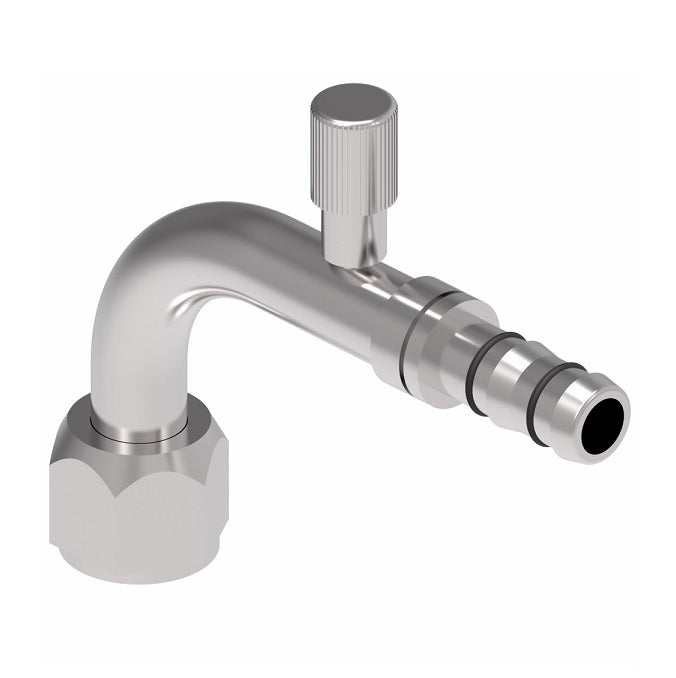

FJ3112-01-0808S E-Z Clip System by Danfoss | Female O-Ring (Long Pilot) Metric Thread with High Side Charge Port (R134a) 90° Elbow | A/C Refrigeration Fitting | -08 Female O-Ring Long Pilot x -08 Hose Barb | Steel
FJ3112-01-0808S E-Z Clip System by Danfoss | Female O-Ring (Long Pilot) Metric Thread with High Side Charge Port (R134a) 90° Elbow | A/C Refrigeration Fitting | M20 Female O-Ring Long Pilot x -08 Hose Barb | Steel
FJ3112-01-0808S E-Z Clip System by Danfoss | Female O-Ring (Long Pilot) Metric Thread with High Side Charge Port (R134a) 90° Elbow | A/C Refrigeration Fitting | M20 Female O-Ring Long Pilot x -08 Hose Barb | Steel
FJ3112-01-0808S E-Z Clip System by Danfoss | Female O-Ring (Long Pilot) Metric Thread with High Side Charge Port (R134a) 90° Elbow | A/C Refrigeration Fitting | -08 Female O-Ring Long Pilot x -08 Hose Barb | Steel

FJ3112-01-0808S E-Z Clip System by Danfoss | Female O-Ring (Long Pilot) Metric Thread with High Side Charge Port (R134a) 90° Elbow | A/C Refrigeration Fitting | M20 Female O-Ring Long Pilot x -08 Hose Barb | Steel

$128.03 - $128.03
$128.03
$128.03 - $128.03
$128.03

Danfoss A/C & Refrigeration
E-Z Clip System - Female O-Ring (Long Pilot) Metric Thread with High Side Charge Port (R134a) - 90° Elbow

O-Ring Not Included. Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.
Specifications for Variant SKU: FJ3112-01-0808S Danfoss
Brand: E-Z Clip
Shape (Orientation): 90 Degree
Ends Configuration: M20 Female O-Ring Long Pilot, 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: GH001 Series  |   GH134 Series
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. D Ref. F Ref. H Ref. Ref.

 Clip & Cage Kit
(Required)		 O-Ring Options
Neoprene Green HNBR
FJ3112-01-0808S M20 x 1.5 -08 4.52" 2.98" 0.69 1.62" 0.94" FF14172 22546-13 FF90178-13
- M20 x 1.5 -10 4.53" 2.98" 0.69 1.62" 0.94" FF14173 22546-13 FF90178-13
FJ3112-03-0806S M20 x 1.5 -06 4.50" 2.98" 0.69 1.62" 0.94" FF14171 22546-13 FF90178-13
FJ3112-03-1010S M24 x 1.5 -10 4.88" 3.33" 0.63 1.89" 1.125" FF14173 22546-15 FF90178-15
