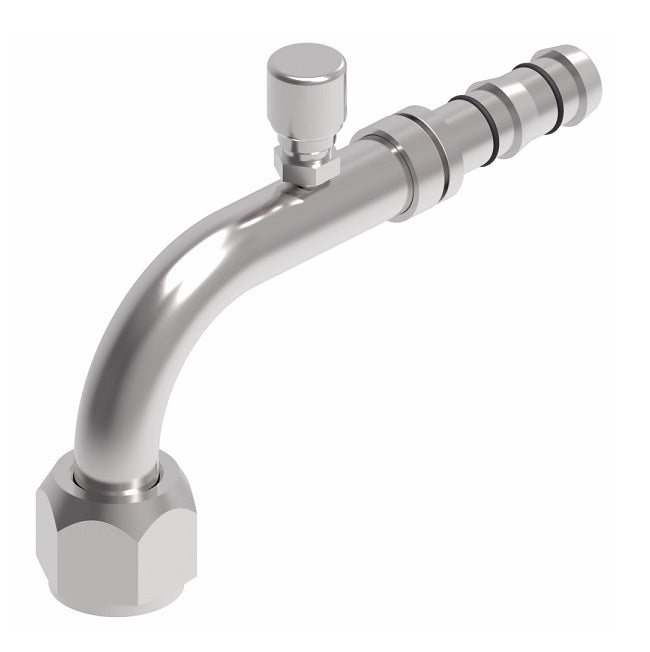

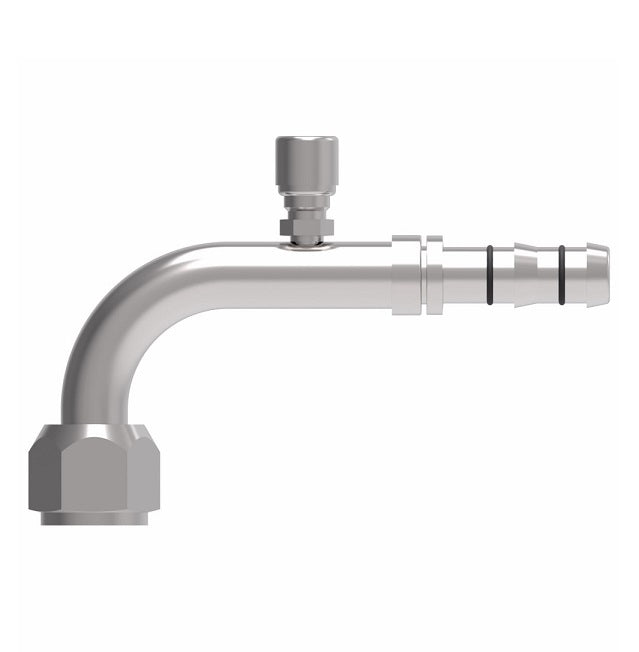

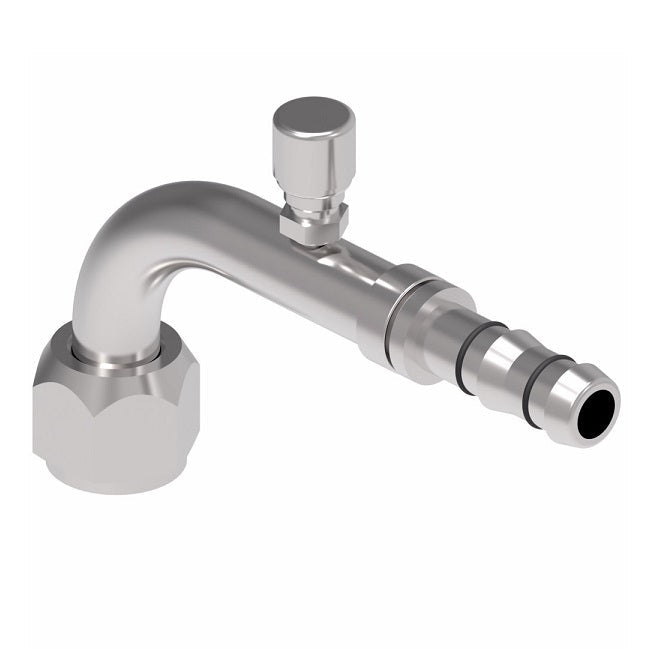

FJ3163-02-1212S E-Z Clip System by Danfoss | Female O-Ring 90° Elbow (Short Pilot) with Charge Port (7/16-20 thd) | A/C Refrigeration Fitting | -12 Female O-Ring Short Pilot x -12 Hose Barb | Steel

Original price $73.08 - Original price $73.08
Original price
$73.08
$73.08 - $73.08
Current price $73.08

Danfoss A/C & Refrigeration
E-Z Clip System - Female O-Ring (Short Pilot) with Charge Port (7/16-20 thd) - 90° Elbow

O-Ring Not Included. Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.


Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: FJ3163-02-1212S Danfoss
Brand: E-Z Clip
Shape (Orientation): 90 Degree
Ends Configuration: 3/4in Female O-Ring Short Pilot, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: GH001 Series  |   GH134 Series
Steel
Part Number
Thread
"T"
Hose Size A Ref. D Ref. F Ref. H Ref. Ref.

Clip & Cage Kit
(Required)
O-Ring Options
Neoprene Green HNBR
FJ3163-01-1010S 7/8-14 -10 4.80" 3.25" 0.79" 1.89" 1.06" FF14173 22546-15 FF90178-15
FJ3163-02-1212S 1-1/16-14 -12 5.08" 3.50" 0.79" 2.56" 1.25" FF14174 22546-17 FF90178-17
