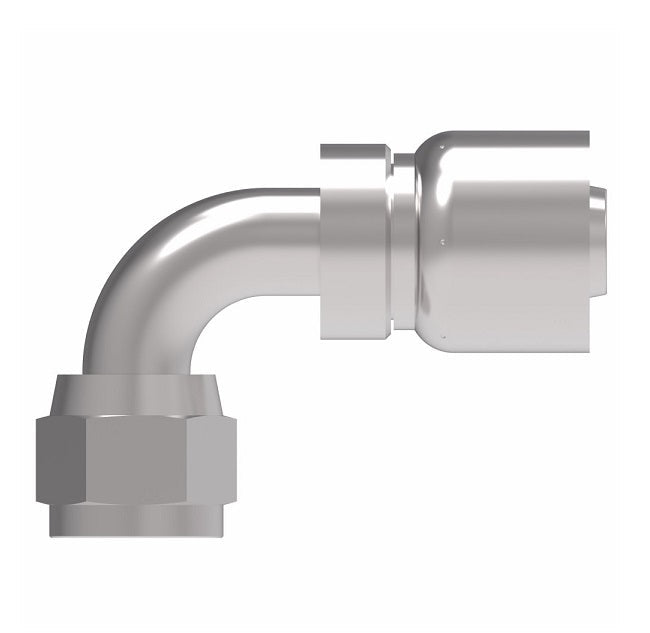

FJ3250-0608S Aeroquip by Danfoss | Female 37° JIC Swivel 90° Elbow 100R5 Crimp Fitting | FJ Series | -06 Female 37° JIC Swivel x -08 Hose Barb | Steel

FJ3250-0608S Aeroquip by Danfoss | Female 37° JIC Swivel 90° Elbow 100R5 Crimp Fitting | FJ Series | -06 Female 37° JIC Swivel x -08 Hose Barb | Steel

Name: FJ3250-0608S Aeroquip by Danfoss | Female 37° JIC Swivel 90° Elbow 100R5 Crimp Fitting | FJ Series | -06 Female 37° JIC Swivel x -08 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: FJ3250-0608S Danfoss
Price: 73.16 USD
Availability: InStock

$73.16 - $73.16

$73.16

$73.16 - $73.16

$73.16

Aeroquip® by Danfoss
Truck and Fuel 100R5 Crimp Fitting - FJ Series - Female 37° JIC Swivel - 90° Elbow

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FJ3250-0608S Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	3/8in Female JIC, 1/2in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	1503 Series \| FC234 Series \| FC300 Series \| FC350 Series \| FC355 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Hose Size	Thread	A	D	H	Hex
FJ3250-0604S	-04	9/16-18	1.83"	1.05"	0.85"	0.69"
FJ3250-0606S	-06	9/16-18	1.84"	1.05"	0.85"	0.69"
FJ3250-0608S	-08	9/16-18	1.85"	1.05"	0.85"	0.69"
FJ3250-1212S	-12	1-1/16-12	2.78"	1.90"	1.82"	1.25"
FJ3250-1616S	-16	1-5/16-12	3.19"	2.20"	2.39"	1.50"
FJ3250-2020S	-20	1-5/8-12	4.27"	2.90"	3.25"	2.00"
FJ3250-2424S	-24	1-7/8-12	4.27"	2.79"	3.05"	2.25"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
