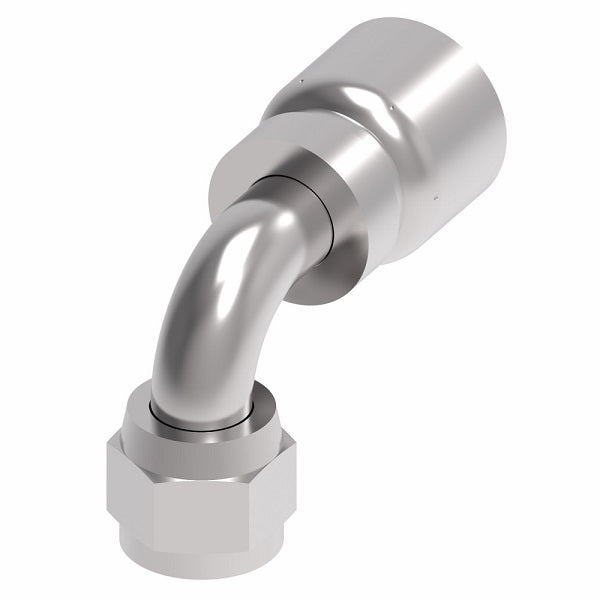

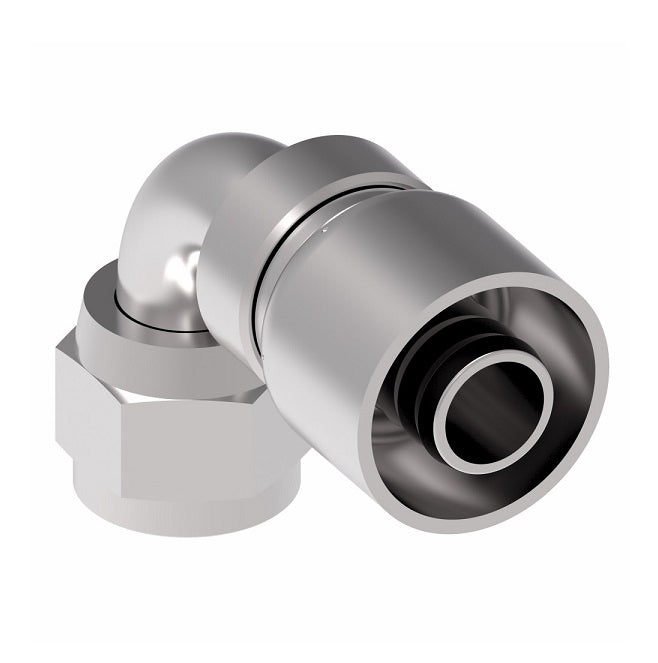

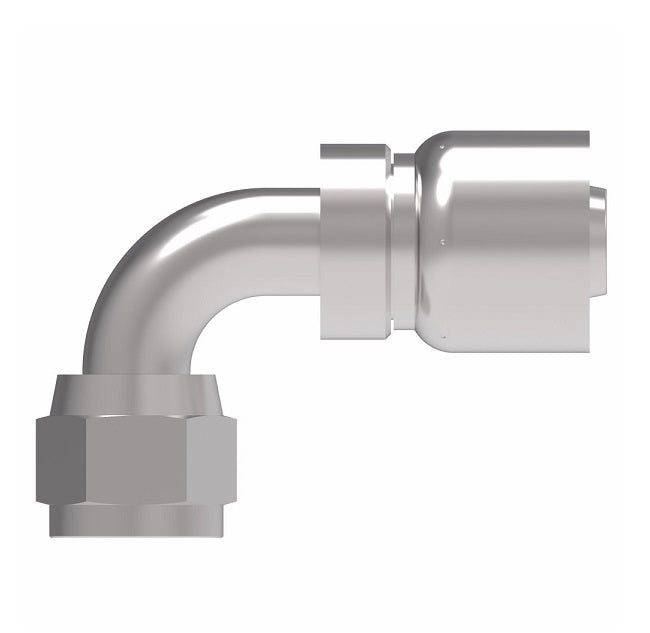

FJ3250-0606S Aeroquip by Danfoss | Female 37° JIC Swivel 90° Elbow 100R5 Crimp Fitting | FJ Series | -06 Female 37° JIC Swivel x -06 Hose Barb | Steel

FJ3250-0606S Aeroquip by Danfoss | Female 37° JIC Swivel 90° Elbow 100R5 Crimp Fitting | FJ Series | -06 Female 37° JIC Swivel x -06 Hose Barb | Steel

Name: FJ3250-0606S Aeroquip by Danfoss | Female 37° JIC Swivel 90° Elbow 100R5 Crimp Fitting | FJ Series | -06 Female 37° JIC Swivel x -06 Hose Barb | Steel
Brand: Danfoss/Eaton
SKU: FJ3250-0606S Danfoss
Price: 34.09 USD
Availability: InStock

$34.09 - $34.09

$34.09

$34.09 - $34.09

$34.09

Aeroquip® by Danfoss
Truck and Fuel 100R5 Crimp Fitting - FJ Series - Female 37° JIC Swivel - 90° Elbow

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: FJ3250-0606S Danfoss
Shape (Orientation):	90 Degree
Ends Configuration:	3/8in Female JIC, 3/8in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	1503 Series \| FC234 Series \| FC300 Series \| FC350 Series \| FC355 Series

Technical Info:
Crimp Fitting Socket Data.PDF


Steel Part Number	Hose Size	Thread	A	D	H	Hex
FJ3250-0604S	-04	9/16-18	1.83"	1.05"	0.85"	0.69"
FJ3250-0606S	-06	9/16-18	1.84"	1.05"	0.85"	0.69"
FJ3250-0608S	-08	9/16-18	1.85"	1.05"	0.85"	0.69"
FJ3250-1212S	-12	1-1/16-12	2.78"	1.90"	1.82"	1.25"
FJ3250-1616S	-16	1-5/16-12	3.19"	2.20"	2.39"	1.50"
FJ3250-2020S	-20	1-5/8-12	4.27"	2.90"	3.25"	2.00"
FJ3250-2424S	-24	1-7/8-12	4.27"	2.79"	3.05"	2.25"
