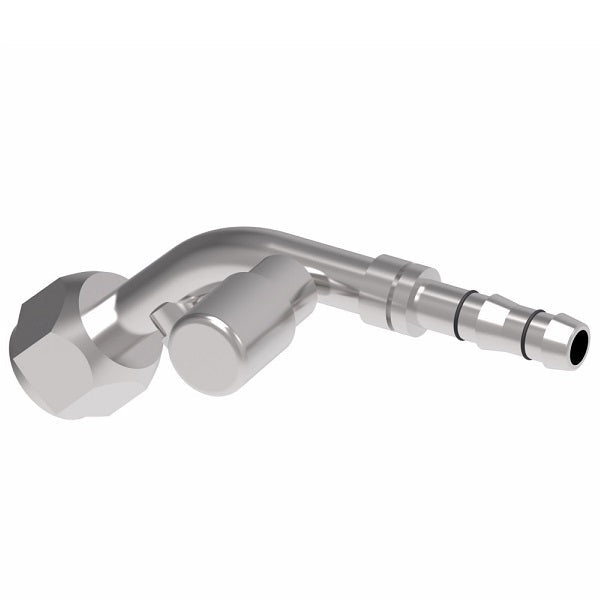

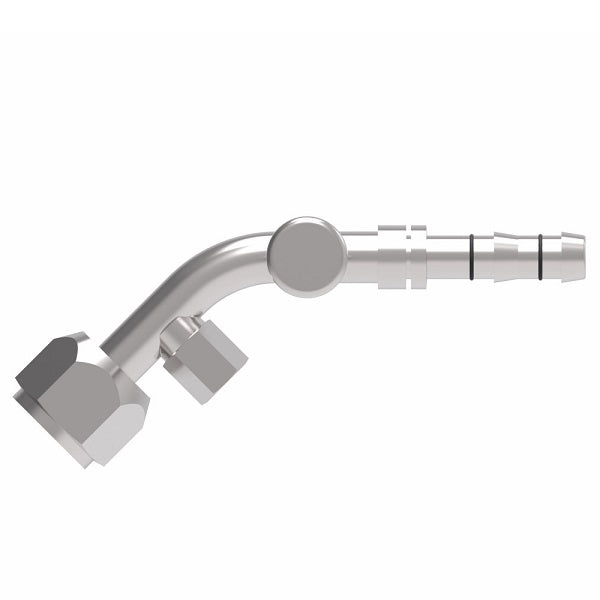

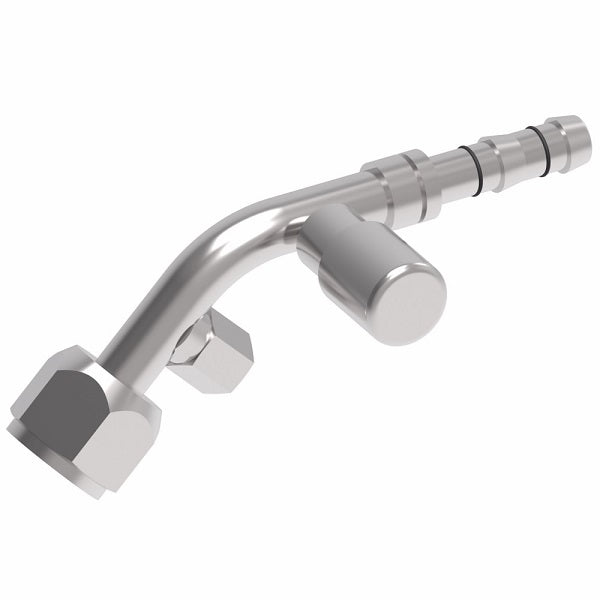

FJ3365-01-1012S E-Z Clip System by Danfoss | Female O-Ring 45° Elbow (Short Pilot) with R134a Low Side Port & Switch Port (1/8-27 thd) | A/C Refrigeration Fitting | -10 Female O-Ring Short Pilot x -12 Hose Barb | Steel
FJ3365-01-1012S E-Z Clip System by Danfoss | Female O-Ring 45° Elbow (Short Pilot) with R134a Low Side Port & Switch Port (1/8-27 thd) | A/C Refrigeration Fitting | -10 Female O-Ring Short Pilot x -12 Hose Barb | Steel
FJ3365-01-1012S E-Z Clip System by Danfoss | Female O-Ring 45° Elbow (Short Pilot) with R134a Low Side Port & Switch Port (1/8-27 thd) | A/C Refrigeration Fitting | -10 Female O-Ring Short Pilot x -12 Hose Barb | Steel
FJ3365-01-1012S E-Z Clip System by Danfoss | Female O-Ring 45° Elbow (Short Pilot) with R134a Low Side Port & Switch Port (1/8-27 thd) | A/C Refrigeration Fitting | -10 Female O-Ring Short Pilot x -12 Hose Barb | Steel

FJ3365-01-1012S E-Z Clip System by Danfoss | Female O-Ring 45° Elbow (Short Pilot) with R134a Low Side Port & Switch Port (1/8-27 thd) | A/C Refrigeration Fitting | -10 Female O-Ring Short Pilot x -12 Hose Barb | Steel

$108.68 - $108.68
$108.68
$108.68 - $108.68
$108.68

Danfoss A/C & Refrigeration
E-Z Clip System - Female O-Ring (Short Pilot) with R134a Low Side Port and Switch Port (1/8-27 thd) - 45° Elbow

O-Ring Not Included. Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.
Specifications for Variant SKU: FJ3365-01-1012S Danfoss
Brand: E-Z Clip
Shape (Orientation): 45 Degree
Ends Configuration: 5/8in Female O-Ring Short Pilot, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: GH001 Series  |   GH134 Series
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. D Ref. F Ref. H Ref. Ref.

 Clip & Cage Kit
(Required)		 O-Ring Options
Neoprene Green HNBR
FJ3365-01-1012S* 7/8-14 -12 5.09" 3.51" 0.50" 1.43" 1.13" FF14174 22546-15 FF90178-15

*Made to order
