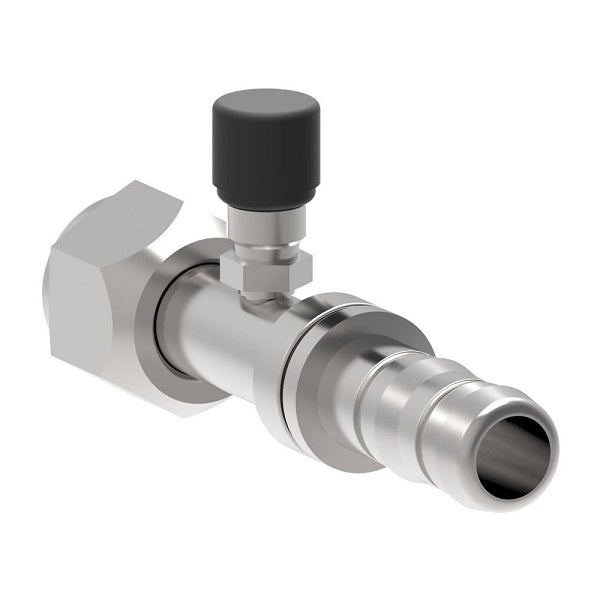

FJ3416-01-1010S E-Z Clip System by Danfoss | Female O-Ring (Long Pilot) with Switch Port (M10 X 1.25) | A/C Refrigeration Fitting | -10 Female O-Ring Long Pilot x -10 Hose Barb | Steel

FJ3416-01-1010S E-Z Clip System by Danfoss | Female O-Ring (Long Pilot) with Switch Port (M10 X 1.25) | A/C Refrigeration Fitting | -10 Female O-Ring Long Pilot x -10 Hose Barb | Steel

$118.99 - $118.99
$118.99
$118.99 - $118.99
$118.99

Danfoss A/C & Refrigeration
E-Z Clip System - Female O-Ring Straight (Long Pilot) with Switch Port (M10 X 1.25) - Straight

O-Ring Not Included. Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.
Specifications for Variant SKU: FJ3416-01-1010S Danfoss
Brand: E-Z Clip
Shape (Orientation): Straight
Ends Configuration: 5/8in Female O-Ring Long Pilot, 5/8in Hose Barb
Material(s): Steel
Compatible with the following Series: GH001 Series  |   GH134 Series
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. D Ref. F Ref. Ref.

 Clip & Cage Kit
(Required)		 O-Ring Options
Neoprene Green HNBR
FJ3416-01-1010S 7/8-14 10" 4.25" 2.25" 0.63" 1.06" FF14173 22546-15 FF90178-15
