Danfoss A/C & Refrigeration

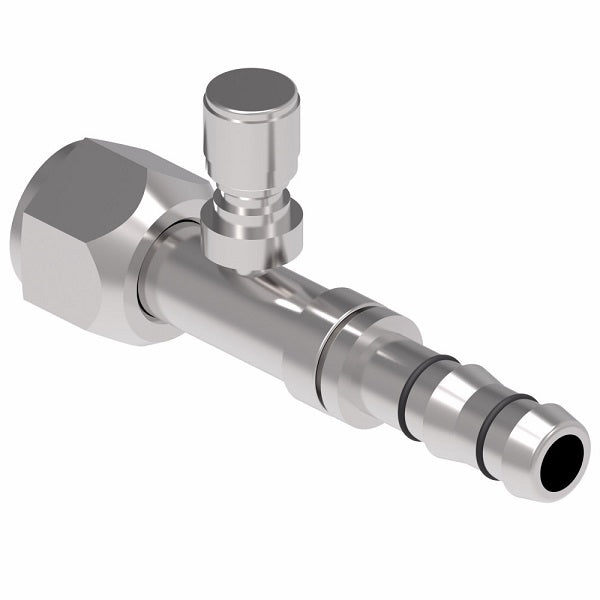

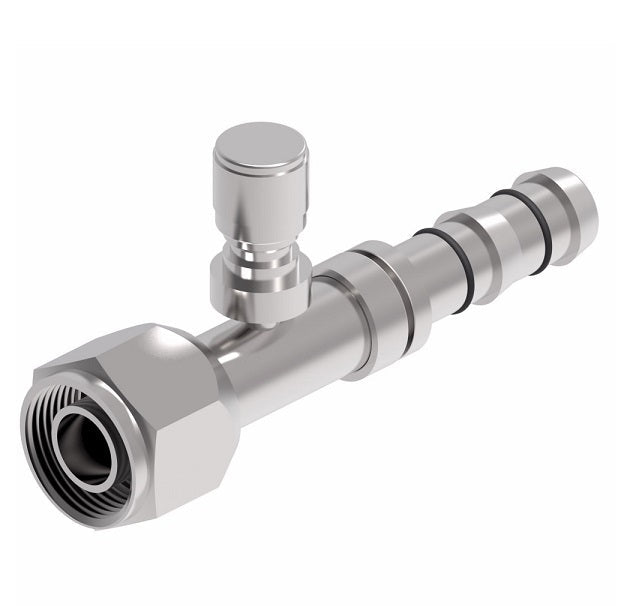

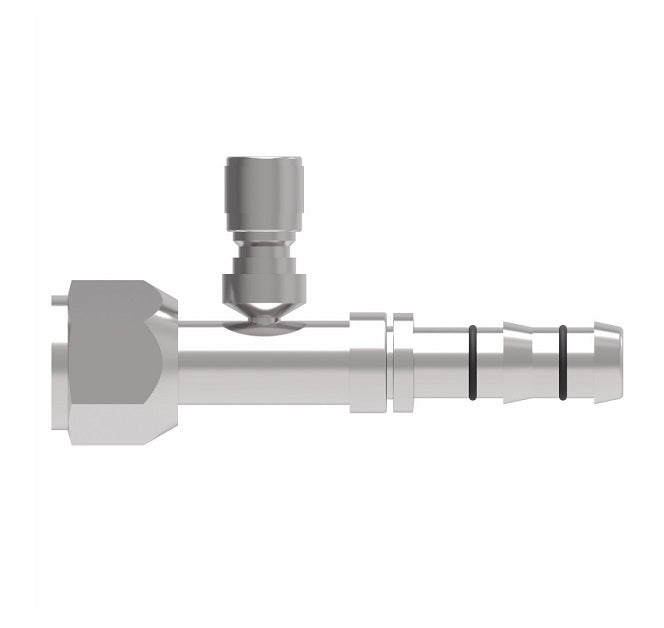

E-Z Clip System - Female O-Ring (Long Pilot) with Switch Port (M12 X 1.25) - Straight

O-Ring Not Included. Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.
Specifications for Variant SKU: FJ3461-02-1012S Danfoss
Brand: E-Z Clip
Shape (Orientation): Straight
Ends Configuration: 5/8in Female O-Ring Long Pilot, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: GH001 Series  |   GH134 Series
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. D Ref. F Ref. Ref.

 Clip & Cage Kit
(Required)		 O-Ring Options
Neoprene Green HNBR
FJ3461-01-1010S 7/8-14 -10 4.25" 2.25" 0.63" 1.06" FF14173 22546-15 FF90178-15
FJ3461-02-1012S 7/8-14 -12 4.27" 2.25" 0.63" 1.06" FF14174 22546-15 FF90178-15
FJ3461-03-1212S 1-1/16-14 -12 4.86" 2.71" 0.54" 1.25" FF14174 22546-17 FF90178-17
