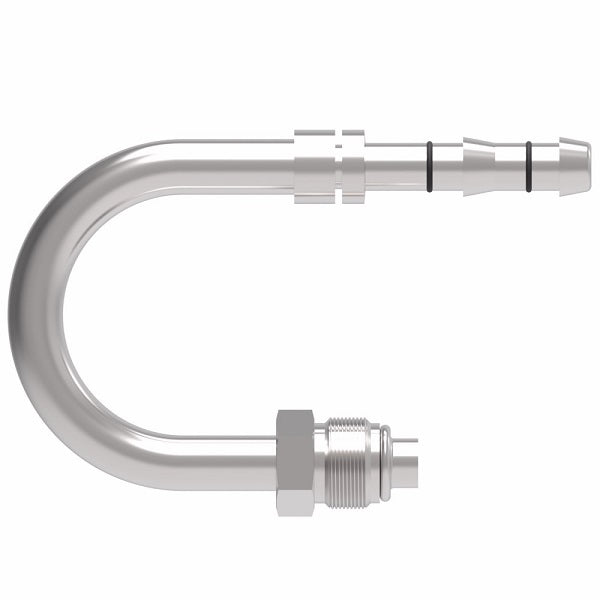

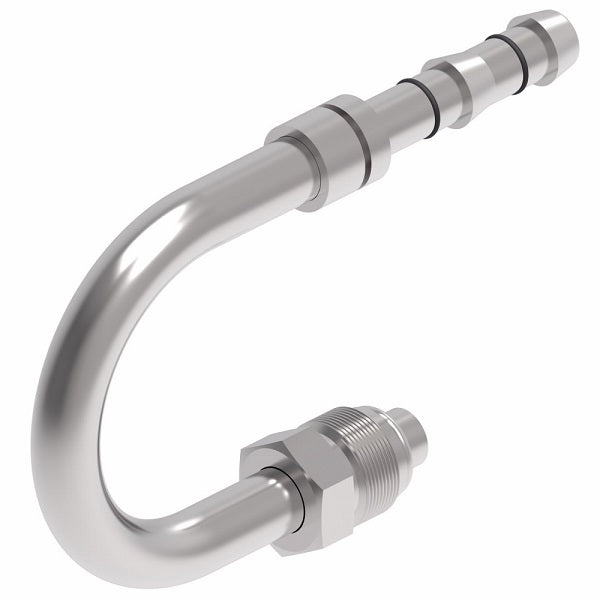

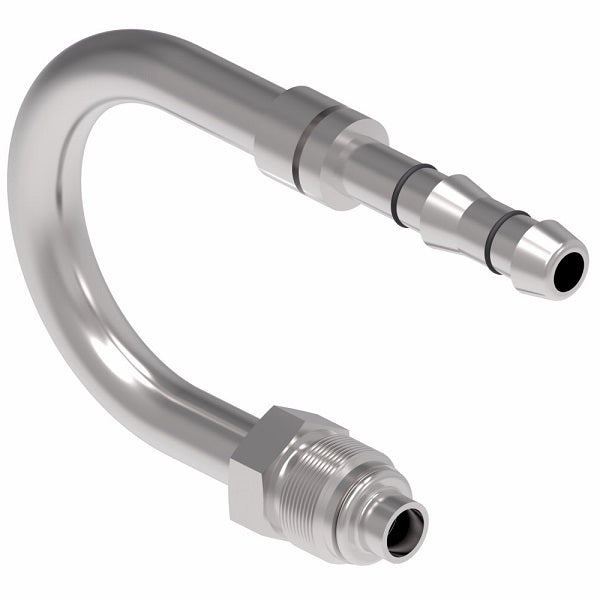

FJ3804-0606S E-Z Clip System by Danfoss | Male O-Ring (Short Pilot) 180° Elbow | A/C Refrigeration Fitting | -06 Male O-Ring Short Pilot x -06 Hose Barb | Steel
FJ3804-0606S E-Z Clip System by Danfoss | Male O-Ring (Short Pilot) 180° Elbow | A/C Refrigeration Fitting | -06 Male O-Ring Short Pilot x -06 Hose Barb | Steel
FJ3804-0606S E-Z Clip System by Danfoss | Male O-Ring (Short Pilot) 180° Elbow | A/C Refrigeration Fitting | -06 Male O-Ring Short Pilot x -06 Hose Barb | Steel
FJ3804-0606S E-Z Clip System by Danfoss | Male O-Ring (Short Pilot) 180° Elbow | A/C Refrigeration Fitting | -06 Male O-Ring Short Pilot x -06 Hose Barb | Steel

FJ3804-0606S E-Z Clip System by Danfoss | Male O-Ring (Short Pilot) 180° Elbow | A/C Refrigeration Fitting | -06 Male O-Ring Short Pilot x -06 Hose Barb | Steel

$60.56 - $60.56
$60.56
$60.56 - $60.56
$60.56

Danfoss A/C & Refrigeration
E-Z Clip System - Male O-Ring (Short Pilot) - 180° Elbow

O-Ring Not Included. Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.
Specifications for Variant SKU: FJ3804-0606S Danfoss
Brand: E-Z Clip
Shape (Orientation): Straight
Ends Configuration: 3/8in Male O-Ring Short Pilot, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: GH001 Series  |   GH134 Series
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. H Ref. Ref.

 Clip & Cage Kit
(Required)		 O-Ring Options
Neoprene Green HNBR
FJ3804-0606S 5/8-18 -06 - 2.00" 0.625" FF14171 22546-11 FF90178-11
FJ3804-1010S 7/8-18 -10 - 3.00" 0.88" FF14173 22546-15 FF90178-15
