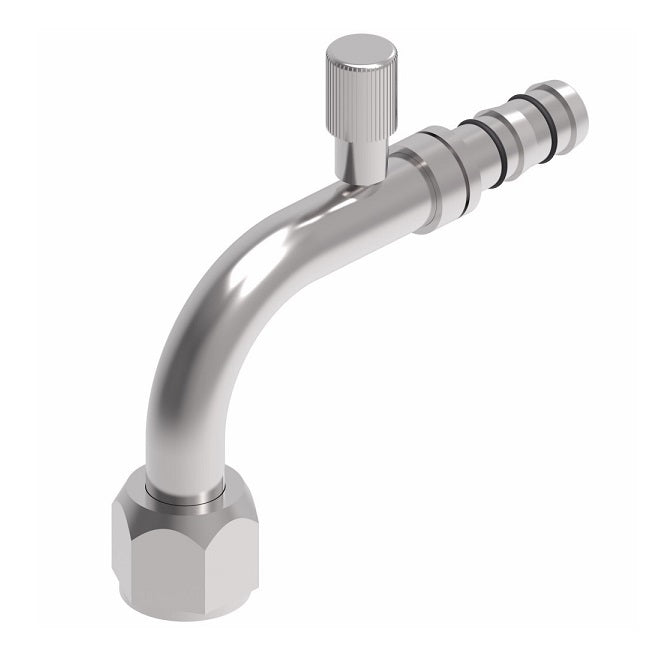

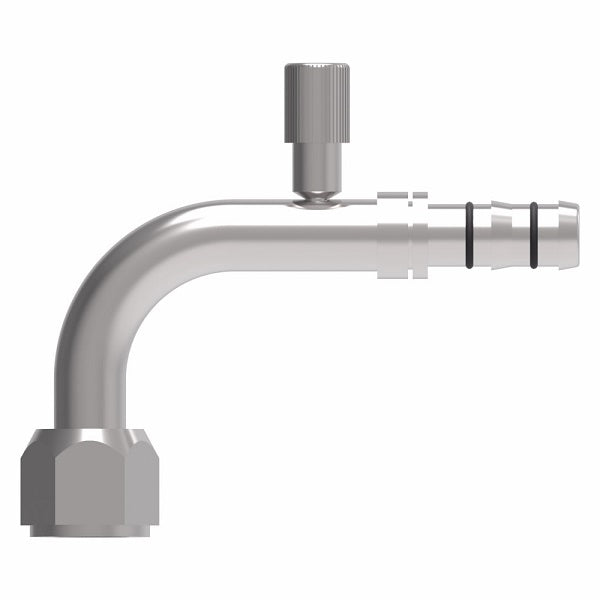

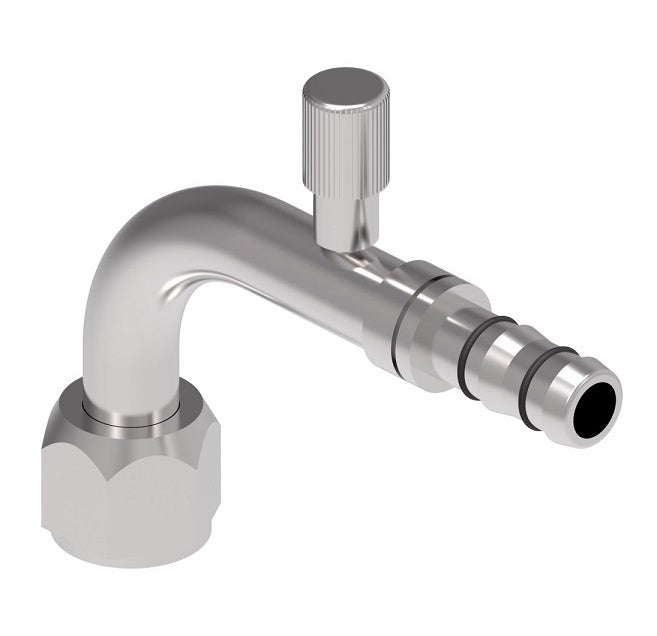

FJ3892-01-1010S E-Z Clip System by Danfoss | Female O-Ring (Long Pilot) with R134a Low Side Port (Metric Thread) 90° Elbow | A/C Refrigeration Fitting | M24 Female O-Ring Long Pilot x -10 Hose Barb | Steel
FJ3892-01-1010S E-Z Clip System by Danfoss | Female O-Ring (Long Pilot) with R134a Low Side Port (Metric Thread) 90° Elbow | A/C Refrigeration Fitting | M24 Female O-Ring Long Pilot x -10 Hose Barb | Steel
FJ3892-01-1010S E-Z Clip System by Danfoss | Female O-Ring (Long Pilot) with R134a Low Side Port (Metric Thread) 90° Elbow | A/C Refrigeration Fitting | M24 Female O-Ring Long Pilot x -10 Hose Barb | Steel
FJ3892-01-1010S E-Z Clip System by Danfoss | Female O-Ring (Long Pilot) with R134a Low Side Port (Metric Thread) 90° Elbow | A/C Refrigeration Fitting | M24 Female O-Ring Long Pilot x -10 Hose Barb | Steel

FJ3892-01-1010S E-Z Clip System by Danfoss | Female O-Ring (Long Pilot) with R134a Low Side Port (Metric Thread) 90° Elbow | A/C Refrigeration Fitting | M24 Female O-Ring Long Pilot x -10 Hose Barb | Steel

$56.52 - $56.52
$56.52
$56.52 - $56.52
$56.52

Danfoss A/C & Refrigeration
E-Z Clip System - Female O-Ring (Long Pilot) with R134a Low Side Port (Metric Thread) - 90° Elbow

O-Ring Not Included. Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.
Specifications for Variant SKU: FJ3892-01-1010S Danfoss
Brand: E-Z Clip
Shape (Orientation): 90 Degree
Ends Configuration: M24 Female O-Ring Long Pilot, 5/8in Hose Barb
Material(s): Steel
Compatible with the following Series: GH001 Series  |   GH134 Series
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. D Ref. F Ref. H Ref. Ref.

 Clip & Cage Kit
(Required)		 O-Ring Options
Neoprene Green HNBR
FJ3892-01-1010S M24 x 1.5 -10 4.88" 3.33" 0.63 1.89" 1.125" FF14173 22546-15 FF90178-15
