FJ9706-0404S Aeroquip by Danfoss | Female ORS Swivel 100R5 Reusable Hose Fitting | -04 Female O-Ring Face Seal Swivel x -04 Reusable Hose End | Steel

FJ9706-0404S Aeroquip by Danfoss | Female ORS Swivel 100R5 Reusable Hose Fitting | -04 Female O-Ring Face Seal Swivel x -04 Reusable Hose End | Steel

Name: FJ9706-0404S Aeroquip by Danfoss | Female ORS Swivel 100R5 Reusable Hose Fitting | -04 Female O-Ring Face Seal Swivel x -04 Reusable Hose End | Steel
Brand: Danfoss/Eaton
SKU: FJ9706-0404S Danfoss
Price: 25.2 USD
Availability: InStock

$25.20 - $25.20

$25.20

$25.20 - $25.20

$25.20

Aeroquip® by Danfoss

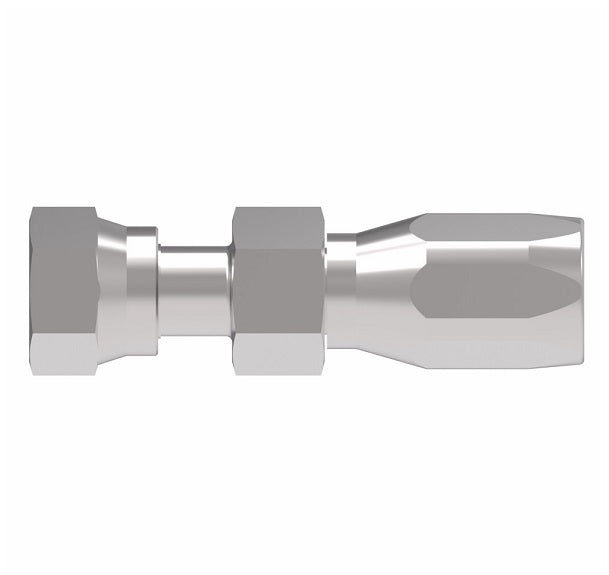

SAE 100R5 Style Reusable Hose Fitting - Female O-Ring Face Seal (ORS) Swivel - Straight

(Formerly Eaton Aeroquip)

Specifications for Variant SKU: FJ9706-0404S Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/4in Female O-Ring Face Seal, 1/4in Reusable Hose End
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	1503 Series \| 2580 Series \| 2651 \| FC234 Series \| FC300 Series \| FC321 Series \| FC350 Series \| FC355 Series \| FC802 Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel Part Number	Hose Size	"T" Thread	A	D	EØ
FJ9706-0404S	-04	9/16-18	2.09"	1.34"	0.13"
FJ9706-0606S	-06	11/16-16	2.43"	1.53"	0.24"
FJ9706-0808S	-08	13/16-16	3.13"	1.98"	0.36"
FJ9706-1010S	-10	1-14	3.37"	2.08"	0.46"
FJ9706-1212S	-12	1-3/16-12	3.68"	2.11"	0.55"
FJ9706-1616S	-16	1-7/16-12	3.50"	2.23"	0.82"
FJ9706-2020S	-20	1-11/16-12	3.64"	2.28"	1.05"
FJ9706-2424S	-24	2-12	3.86"	2.40"	1.26"
