FJX45-14-16-R5 by Kurt Hydraulics | Jump Size | Female 37 Degree JIC | 45 Degree Bent Tube | Swivel | for 7/8" Hose ID

Save $23.67

$59.18

$59.18 - $59.18

$59.18

$35.51

$35.51 - $35.51

$35.51

by Kurt Hydraulics
FJX45-R5 - 37 deg. JIC Female 45 deg. Bent Tube Swivel - R5 Couplings

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: FJX45-14-16-R5 Kurt
Series:	R5 Series
Shape (Orientation):	45 Degree
Ends Configuration:	7/8in Hose Barb, 1in Female JIC
Special Properties:	Swivel, Jump Size

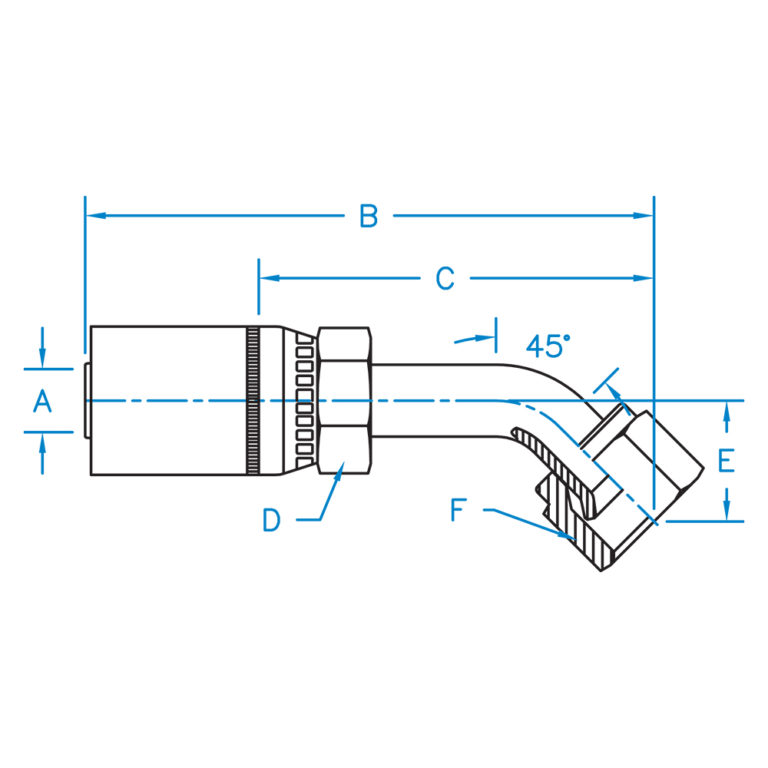

Part Number	A	B	C	D	E	F	Hose ID (In)	Thread
FJX45-03-04-R5	0.187	N/A	N/A	N/A	N/A	N/A	3/16"	7/16-20
For FJX45-04-04-R5 Use: FJX45-04-04
For FJX45-04-05-R5 Use: FJX45-04-05
For FJX45-04-06-R5 Use: FJX45-04-06
FJX45-05-04-R5	0.312	3.185	1.875	5/8	1.394	9/16	5/16"	7/16-20
FJX45-05-06-R5	0.312	3.294	1.684	5/8	0.433	11/16	5/16"	9/16-18
FJX45-07-06-R5	0.437	3.424	1.954	3/4	0.433	11/16	7/16"	9/16-18
FJX45-07-08-R5	0.437	3.786	2.316	7/8	0.590	7/8	7/16"	3/4-16
For FJX45-08-08-R5 Use: FJX45-08-08
For FJX45-08-10-R5 Use: FJX45-08-10
FJX45-10-10-R5	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
FJX45-10-12-R5	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
FJX45-14-16-R5	0.875	4.750	2.312	1-1/2	2.500	1-1/2	7/8"	1-5/16-12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
