FJX90-16-20-W by Kurt Hydraulics | Jump Size | Female 37 Degree JIC | 90 Degree | Swivel | for 1" Hose ID

Save $37.39

$93.47

$93.47 - $93.47

$93.47

$56.08

$56.08 - $56.08

$56.08

by Kurt Hydraulics
FJX90-W - 37 deg. JIC Female 90 deg. Bent Tube Swivel

Kurt Fittings and Hose should only be used together.

Specifications for Variant SKU: FJX90-16-20-W Kurt
Series:	W Series
Shape (Orientation):	90 Degree
Ends Configuration:	1in Hose Barb, 1-1/4in Female JIC
Special Properties:	Swivel, Jump Size

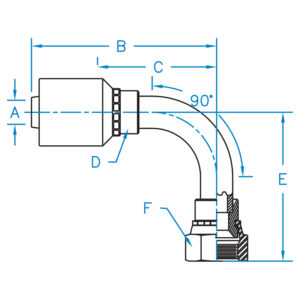

Part Number	A	B	C	D	E	Hose ID (In)	Thread
FJX90-06-04-W	0.375	3.025	1.655	9/16	0.830	3/8"	7/16-20
FJX90-06-06-W	0.375	3.03	1.8	11/16	0.91	3/8"	9/16-18
FJX90M-06-06-W	0.375	3.174	1.804	11/16	1.500	3/8"	9/16-18
FJX90-06-08-W	0.375	2.640	1.300	7/8	1.380	3/8"	3/4-16
FJX90-08-06-W	0.500	2.640	1.300	7/8	2.430	1/2"	9/16-18
FJX90-08-08-W	0.500	2.770	1.430	1.000	1.630	1/2"	3/4-16
FJX90M-08-08-W	0.500	3.486	2.145	7/8	1.614	1/2"	3/4-16
FJX90-08-10-W	0.500	4.820	3.030	1-1/4	2.650	1/2"	7/8-14
FJX90-08-12-W	0.500	5.220	3.110	1-1/2	2.770	1/2"	1-1/16-12
FJX90-10-10-W	0.625	3.82	1.72	2.000	1.23	5/8"	7/8-14
FJX90-10-12-W	0.625	6.230	3.780	2.000	3.330	5/8"	1-1/16-12
FJX90-12-12-W	0.750	6.230	2.725	2-1/4	2.574	3/4"	1-1/16-12
FJX90-12-16-W	0.750	6.740	4.140	2-1/4	3.910	3/4"	1-5/16-12
FJX90-16-16-W	1.000	8.260	3.050	2-7/8	2.800	1.000"	1-5/16-12
FJX90-16-20-W	1.000	5.220	3.050	2.000	2.800	1.000"	1-5/18-12
FJX90-20-20-W	1.250	6.230	3.902	2.000	3.240	1-1/4"	1-5/8-12
FJX90-20-24-W	1.250	6.230	3.780	2-1/4	3.360	1-1/4"	1-7/8-12
FJX90-24-24-W	1.500	6.740	4.140	2-1/4	3.940	1-1/2"	1-7/8-12
FJX90-32-32-W	2.000	8.31	5.010	2-7/8	6.16	2.000"	2-1/2-12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
