8-Flx-Thane-SD-50 Flexaust Flx-Thane SD 8 inch Air, Dust, and Material Handling Duct Hose - 50ft

8-Flx-Thane-SD-50 by Flexaust | #8281080050 | Flx-Thane SD | Air, Dust, and Material Handling Duct Hose | 8 inch | 50ft

Save $143.48

$1,434.81

$1,434.81 - $1,434.81

$1,434.81

$1,291.33

$1,291.33 - $1,291.33

$1,291.33

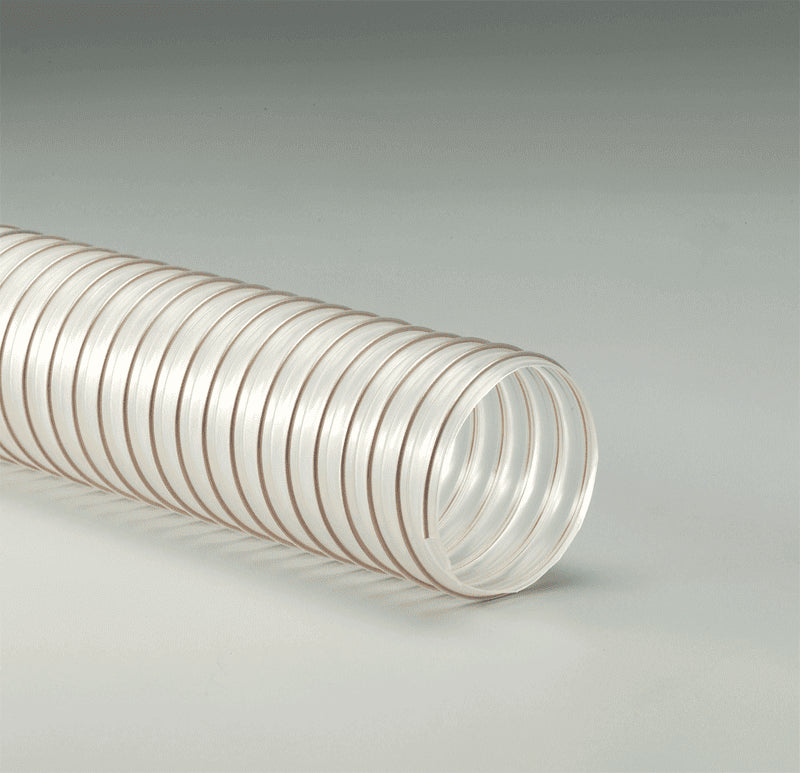

Flexaust Flexadux Flx-Thane® SD Medium weight black or clear static dissipative polyurethane hose reinforced with a bronze coated spring steel wire helix.

Package Quantity: 50 FT

Quantity

Specifications for Variant SKU: 8-Flx-Thane-SD-50 Flexaust \| 50 \|
Brand:	Flexadux PU
Series:	Flx-Thane SD
Hose Color(s):	Clear/Semi-Clear
Internal Diameter:	8in
Tubing Construction:	Polyurethane

SPECIFICATIONS

Other Features:
Applications:	Food Grade, Granule Transport, Paint Spray Extraction, Plastics Industry, Powder & Bulk, Sand Blasting, Shredders, Static Control, Ultra Violet Dryers, Woodworking/Furniture Industry	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Medium weight black or clear static dissipative polyurethane
Reinforcement:	Bronze coated spring steel wire helix	Cover:	N/A
Temperature Range:	-65 deg. F to 225 deg. F	Crimp Fittings:	N/A
Reusable Fittings:	N/A
Great abrasion resistance & high tear strength. Superior chemical resistance & excellent flexibility. Designed for applications with wide temperature ranges. Ideal for clean rooms and material plastic processing applications. Reduces static build-up in material handling applications. Surface resistivity level: 10⁸-10¹⁰ Ohms/Square. Clear is manufactured with FDA acceptable materials.

Part Number 25 ft Reels	Part Number 50 ft Reels	Inside Diameter	Wall Thickness (In)	Centerline Bend Radius (In)	Compression Ratio	Negative Pressure (In/Hg)	Working Pressure (PSI)	Weight - 25ft (Lbs/Ft)	Weight - 50ft (Lbs/Ft)
Flx-Thane SD 2in	Flx-Thane SD 2in	2"	.030"	2"	3:1	29	30	6.25 lbs	12.5 lbs
Flx-Thane SD 2.5in	Flx-Thane SD 2.5in	2.5"	.030"	2.5"	3:1	29	30	8 lbs	16 lbs
Flx-Thane SD 3in	Flx-Thane SD 3in	3"	.030"	3"	3:1	29	29	10 lbs	20 lbs
Flx-Thane SD 4in	Flx-Thane SD 4in	4"	.030"	4"	3:1	29	25	17.5 lbs	35 lbs
Flx-Thane SD 5in	Flx-Thane SD 5in	5"	.030"	5"	3:1	17	22	22.5 lbs	45 lbs
Flx-Thane SD 6in	Flx-Thane SD 6in	6"	.030"	6"	3:1	15	19	25 lbs	50 lbs
Flx-Thane SD 8in	Flx-Thane SD 8in	8"	.030"	8"	3:1	9	14	37.5 lbs	75 lbs
Flx-Thane SD 10in	Flx-Thane SD 10in	10"	.030"	8"	3:1	4	11	40 lbs	80 lbs
Flx-Thane SD 12in	Flx-Thane SD 12in	12"	.030"	10"	3:1	2.2	10	50 lbs	100 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
