5-Flx-Thane-SD-50 by Flexaust | #8281050050 | Flx-Thane SD | Air, Dust, and Material Handling Duct Hose | 5 inch | 50ft
5-Flx-Thane-SD-50 Flexaust Flx-Thane SD 5 inch Air, Dust, and Material Handling Duct Hose - 50ft
5-Flx-Thane-SD-50 by Flexaust | #8281050050 | Flx-Thane SD | Air, Dust, and Material Handling Duct Hose | 5 inch | 50ft
5-Flx-Thane-SD-50 Flexaust Flx-Thane SD 5 inch Air, Dust, and Material Handling Duct Hose - 50ft

5-Flx-Thane-SD-50 by Flexaust | #8281050050 | Flx-Thane SD | Air, Dust, and Material Handling Duct Hose | 5 inch | 50ft

Save $116.81 Save $116.81
$1,168.14
$1,168.14 - $1,168.14
$1,168.14
$1,051.33
$1,051.33 - $1,051.33
$1,051.33

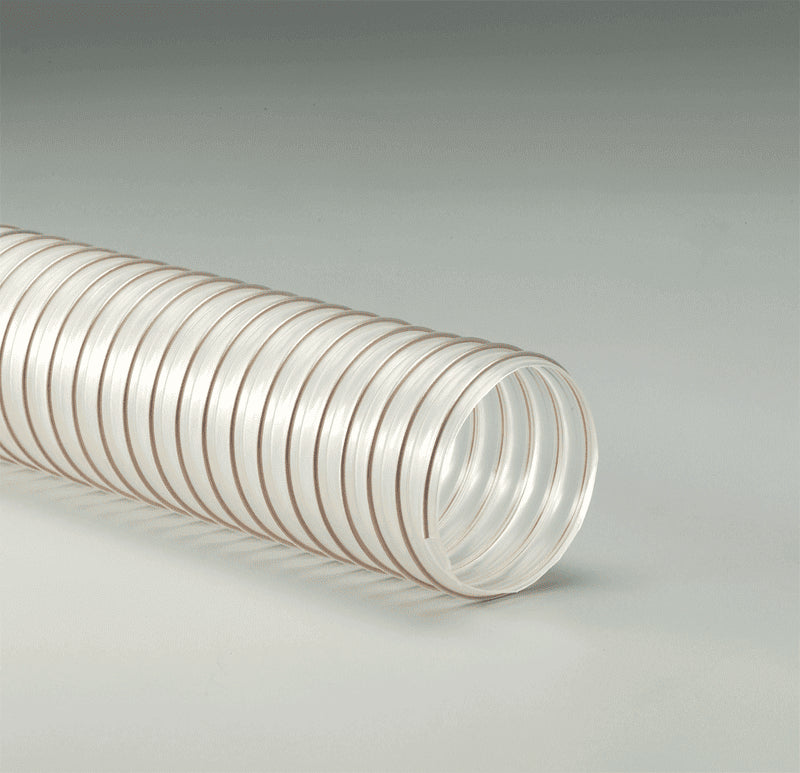

Flexaust Flexadux Flx-Thane® SD Medium weight black or clear static dissipative polyurethane hose reinforced with a bronze coated spring steel wire helix.

Package Quantity: 50 FT

Specifications for Variant SKU: 5-Flx-Thane-SD-50 Flexaust | 50 |
Brand: Flexadux PU
Series: Flx-Thane SD
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 5in
Tubing Construction: Polyurethane

SPECIFICATIONS

Applications: Food Grade, Granule Transport, Paint Spray Extraction, Plastics Industry, Powder & Bulk, Sand Blasting, Shredders, Static Control, Ultra Violet Dryers, Woodworking/Furniture Industry SAE Rating: N/A
Other Ratings: N/A Tube: Medium weight black or clear static dissipative polyurethane
Reinforcement: Bronze coated spring steel wire helix Cover: N/A
Temperature Range: -65 deg. F to 225 deg. F Crimp Fittings: N/A
Reusable Fittings: N/A
Other Features:
  • Great abrasion resistance & high tear strength.
  • Superior chemical resistance & excellent flexibility.
  • Designed for applications with wide temperature ranges.
  • Ideal for clean rooms and material plastic processing applications.
  • Reduces static build-up in material handling applications.
  • Surface resistivity level: 108-1010 Ohms/Square.
  • Clear is manufactured with FDA acceptable materials.
Part Number 25 ft Reels Part Number 50 ft Reels Inside Diameter Wall Thickness (In) Centerline Bend Radius (In) Compression Ratio Negative Pressure (In/Hg) Working Pressure (PSI) Weight - 25ft (Lbs/Ft) Weight - 50ft (Lbs/Ft)
Flx-Thane SD 2in Flx-Thane SD 2in 2" .030" 2" 3:1 29 30 6.25 lbs 12.5 lbs
Flx-Thane SD 2.5in Flx-Thane SD 2.5in 2.5" .030" 2.5" 3:1 29 30 8 lbs 16 lbs
Flx-Thane SD 3in Flx-Thane SD 3in 3" .030" 3" 3:1 29 29 10 lbs 20 lbs
Flx-Thane SD 4in Flx-Thane SD 4in 4" .030" 4" 3:1 29 25 17.5 lbs 35 lbs
Flx-Thane SD 5in Flx-Thane SD 5in 5" .030" 5" 3:1 17 22 22.5 lbs 45 lbs
Flx-Thane SD 6in Flx-Thane SD 6in 6" .030" 6" 3:1 15 19 25 lbs 50 lbs
Flx-Thane SD 8in Flx-Thane SD 8in 8" .030" 8" 3:1 9 14 37.5 lbs 75 lbs
Flx-Thane SD 10in Flx-Thane SD 10in 10" .030" 8" 3:1 4 11 40 lbs 80 lbs
Flx-Thane SD 12in Flx-Thane SD 12in 12" .030" 10" 3:1 2.2 10 50 lbs 100 lbs

Technical data based on 2 ft. straight lengths of hose @ 72 deg.

Flexaust

Flexaust

Flexaust has manufactured durable, long lasting, flexible hose and ducting solutions for industrial and commercial applications for 80 years. Our hose products are used in applications involving air, dust, fume and lightweight materials. Flexaust uses an array of materials including thermoplastic rubber, polyurethane, PVC, neoprene, polyester, and vinyl fabric and polyethylene to manufacture a broad range of products.
