FR-CAP by Dixon Valve | FloMAX Diesel Fueling System | Cap for One-Piece & Two-Piece Diesel Fuel Receivers | Anodized Aluminum

FR-CAP by Dixon Valve | FloMAX Diesel Fueling System | Cap for One-Piece & Two-Piece Diesel Fuel Receivers | Anodized Aluminum

Save $9.03 Save $9.03
$81.27
$81.27 - $81.27
$81.27
$72.24
$72.24 - $72.24
$72.24

Dixon Valve
FloMAX Diesel Fueling System | One-Piece Diesel Fuel Receiver

Designed for on-site refueling of construction, mining, forestry, and agricultural equipment.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: FR-CAP Dixon
Brand: FloMAX
Series: FRS Series, FRA Series, FR-RS Series
Shape (Orientation): Straight
Material(s): Anodized Aluminum
Compatibility & Interchange:
  • Interchanges with Caterpillar® and Wiggins systems.
Features:
  • 2" Male NPT.
Part Number Description Material Cross Over Part Numbers
Caterpillar® Wiggins FastFill Shaw
FRS One-Piece Diesel Fuel Receiver without Cap Nickel-Plated Steel 2G9000 ZN2A R150S -
FRS-C One-Piece Diesel Fuel Receiver with Cap
(Cap has set screw attached vinyl coated cable lanyard.)		 Nickel-Plated Steel - ZNC2A R150SC -
FRA One-Piece Diesel Fuel Receiver without Cap Anodized Aluminum - ZN2A R150AL -
FRA-C One-Piece Diesel Fuel Receiver with Cap
(Cap has set screw attached vinyl coated cable lanyard.)		 Anodized Aluminum - ZNC2A R150ALC -

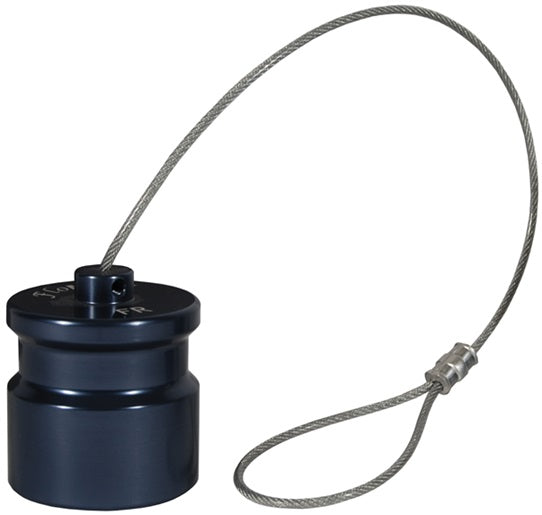

FR-CAP Cap for One-Piece & Two-Piece Diesel Fuel Receivers
(O-ring sealed aluminum cap with set screw attached vinyl coated cable lanyard included.)		 Anodized Aluminum 0D0630 ZC20P C150 388-4327
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
