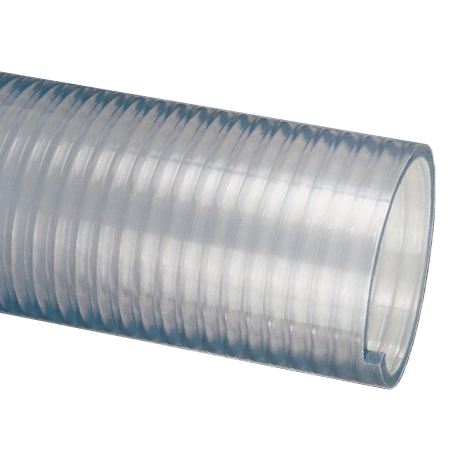

FT200X100 Kuriyama Tigerflex FT Series Heavy Duty Food Grade PVC Suction Hose - 2" - 100ft

FT200X100 Tigerflex by Kuriyama | FT Series | Heavy Duty Food Grade Suction Hose | 2" ID | PVC | 100ft Length

Save $64.59 Save $64.59
$645.92
$645.92 - $645.92
$645.92
$581.33
$581.33 - $581.33
$581.33

Kuriyama Tigerflexft™ Series Heavy Duty Food Grade PVC Suction Hose


Package Quantity: 100 FT

Specifications for Variant SKU: FT200X100 Kuriyama | 100 |
Brand: Tigerflex
Series: FT Series
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 2in
Outer Diameter: 2.36in
Tubing Construction: PVC
Applicable Specs & Approvals: Applicable 3-A Sanitary Standards, Applicable FDA Requirements, Applicable USDA Standards, RoHS Compliant

SPECIFICATIONS

Application: Food grade liquids such as potable water, beer,wine and juice Ice transfer, Food grade material handling, Milk and dairy product transfer, Water suction - standard duty Poultry processing SAE Rating: N/A
Other Ratings: N/A Tube: PVC
Reinforcement: Rigid PVC Helix. Cover: N/A
Temperature Range: -4 deg. F (-20 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications 3A(01), BSE/TSE(02), FDA(03), RoHS(10), USDA(11)
Other Features:
  • Food Grade Materials - Hose complies with applicable FDA(03) and 3-A(01) requirements. Hose approved by USDA(11) for use in meat and poultry plants.
  • Transparent Construction - "See-the-flow." Allows for visual confirmation of material flow.
  • Smooth Outer Cover - Provides increased pressure rating and smooth surface for banding.
Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Approx. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
FT075X100 3/4" 19.0mm 0.94" 24.0mm 115 PSI 75 PSI Full 28in. Hg 3" 100ft 0.17 lbs
FT100X100 1" 25.5mm 1.28" 32.5mm 100 PSI 70 PSI Full 28in. Hg 3" 100ft 0.24 lbs
FT125X100 1-1/4" 32.0mm 1.56" 39.6mm 90 PSI 65 PSI Full 28 in. Hg 4" 100ft 0.44 lbs
FT150X100 1-1/2" 38.1mm 1.80" 46.5mm 85 PSI 60 PSI Full 28in. Hg 6" 100ft 0.50 lbs
FT200X100 2" 50.8mm 2.36" 60.0mm 85 PSI 60 PSI Full 26in. Hg 8" 100ft 0.71 lbs
FT250X100 2-1/2" 63.5mm 2.88" 73.2mm 65 PSI 45 PSI Full 26in. Hg 10" 100ft 0.94 lbs
FT300X100 3" 76.2mm 3.42" 86.9mm 55 PSI 40 PSI Full 24 in. Hg 11" 100ft 1.14 lbs
FT400X100 4" 101.6mm 4.51" 114.6mm 50 PSI 35 PSI Full 24in. Hg 18" 100ft 1.91 lbs
FT400X60 4" 101.6mm 4.51" 114.6mm 50 PSI 35 PSI Full 24in. Hg 18" 60ft 1.91 lbs
FT500X100 5" 127.0mm 5.51" 140.0mm 40 PSI 25 PSI 28in. Hg 23in. Hg 28" 100ft 2.41 lbs
NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
