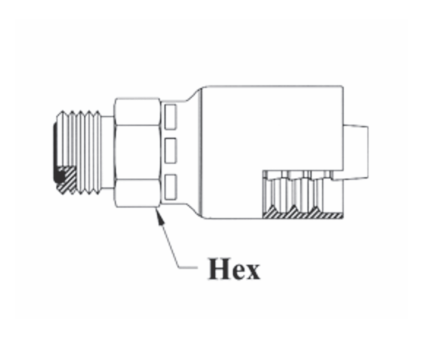

GC29-10x10 Couplamatic Grip Crimp Coupling - O-Ring Face Seal (ORF) - Male Solid - 5/8" Hose ID - 1x14 Thread Size

GC29-10x10 by Couplamatic | Grip Crimp Coupling | 5/8" Hose ID x 1x14 Thread Size O-Ring Face Seal | ORF Male Solid | Straight | Trivalent Zinc Plating

Save $1.83 Save $1.83
$16.47
$16.47 - $16.47
$16.47
$14.64
$14.64 - $14.64
$14.64

Couplamatic Systems Inc.
Grip Crimp Series - O-Ring Face Seal (ORF) - Male Solid
Specifications for Variant SKU: GC29-10x10 Couplamatic
Series: Grip Crimp Series
Shape (Orientation): Straight
Ends Configuration: 5/8in Male O-Ring Face Seal, 5/8in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   2SN Series  |   2SK Series  |   HPI Series  |   HPIII Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   ULTRA-R16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series  |   JH2 Series
Description:
  • Couplings are capped with O-ring included.
  • Grip Crimp couplings can be crimped in virtually all adjustable crimp machines.
  • Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.
  • Trivalent Zinc Plating
Part Number Hose ID Thread Size Tube OD Hex Size Cross Reference Part Numbers
Gates Mega Parker 43
GC29-4x4 1/4" 9/16x18 1/4" 5/8" 4G-4MFFOR 1J043-4-4
GC29-6x6 3/8" 11/16x16 3/8" 3/4" 6G-6MFFOR 1J043-6-6
GC29-6x8 3/8" 13/16x16 1/2" 7/8" 6G-8MFFOR 1J043-8-6
GC29-8x8 1/2" 13/16x16 1/2" 7/8" 8G-8MFFOR 1J043-8-8
GC29-8x10 1/2" 1x14 5/8" 1-1/16" 8G-10MFFOR 1J043-10-8
GC29-8x12 1/2" 1-3/16x12 3/4" 1-1/4" 8G-12MFFOR 1J043-12-8
GC29-10x10 5/8" 1x14 5/8" 1-1/16" 10G-10MFFOR 1J043-10-10
GC29-10x12 5/8" 1-3/16x12 3/4" 1-1/4" - -
GC29-12x12 3/4" 1-3/16x12 3/4" 1-1/4" 12G-12MFFOR 1J043-12-12
GC29-16x16 1" 1-7/16x12 1" 1-1/2" 16G-16MFFOR 1J043-16-16

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
