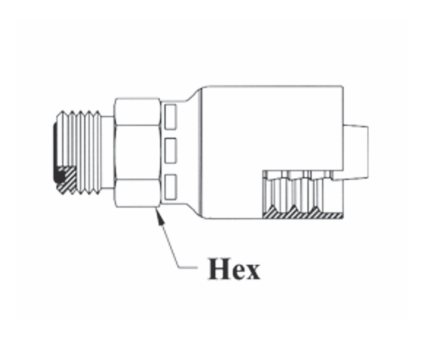

GC29-8x10 Couplamatic Grip Crimp Coupling - O-Ring Face Seal (ORF) - Male Solid - 1/2" Hose ID - 1x14 Thread Size

GC29-8x10 by Couplamatic | Grip Crimp Coupling | 1/2" Hose ID x 1x14 Thread Size O-Ring Face Seal | ORF Male Solid | Straight | Trivalent Zinc Plating

Save $1.22

$10.99

$10.99 - $10.99

$10.99

$9.77

$9.77 - $9.77

$9.77

Couplamatic Systems Inc.
Grip Crimp Series - O-Ring Face Seal (ORF) - Male Solid

Quantity

Specifications for Variant SKU: GC29-8x10 Couplamatic
Series:	Grip Crimp Series
Shape (Orientation):	Straight
Ends Configuration:	5/8in Male O-Ring Face Seal, 1/2in Hose Barb
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| 2SN Series \| 2SK Series \| HPI Series \| HPIII Series \| R16 Series \| DH16 Series \| DHEX16 Series \| ULTRA-R16 Series \| R17 Series \| R17R Series \| WDH17 Series \| 3319A Series \| JH2 Series

Description:
Couplings are capped with O-ring included. Grip Crimp couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating

Part Number	Hose ID	Thread Size	Tube OD	Hex Size	Cross Reference Part Numbers
Part Number	Hose ID	Thread Size	Tube OD	Hex Size	Gates Mega	Parker 43
GC29-4x4	1/4"	9/16x18	1/4"	5/8"	4G-4MFFOR	1J043-4-4
GC29-6x6	3/8"	11/16x16	3/8"	3/4"	6G-6MFFOR	1J043-6-6
GC29-6x8	3/8"	13/16x16	1/2"	7/8"	6G-8MFFOR	1J043-8-6
GC29-8x8	1/2"	13/16x16	1/2"	7/8"	8G-8MFFOR	1J043-8-8
GC29-8x10	1/2"	1x14	5/8"	1-1/16"	8G-10MFFOR	1J043-10-8
GC29-8x12	1/2"	1-3/16x12	3/4"	1-1/4"	8G-12MFFOR	1J043-12-8
GC29-10x10	5/8"	1x14	5/8"	1-1/16"	10G-10MFFOR	1J043-10-10
GC29-10x12	5/8"	1-3/16x12	3/4"	1-1/4"	-	-
GC29-12x12	3/4"	1-3/16x12	3/4"	1-1/4"	12G-12MFFOR	1J043-12-12
GC29-16x16	1"	1-7/16x12	1"	1-1/2"	16G-16MFFOR	1J043-16-16

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
