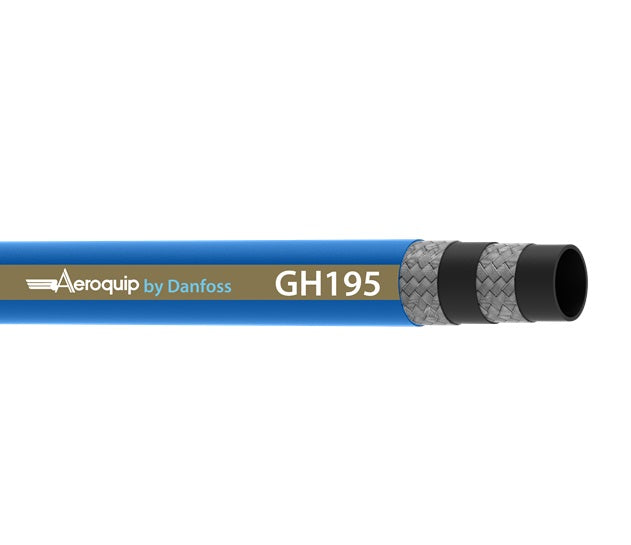

GH195-4 Aeroquip by Danfoss | HI-IMPULSE MatchMate® Blue Premium High Temperature Double Wire Braid Hydraulic Hose | SAE 100R2 | 0.25" ID


Aeroquip® by Danfoss
GH195 Series | HI-IMPULSE MatchMate® Blue Premium High Temperature Double Wire Braid Hydraulic Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.

Sold as Bulk Footage at no Exact Length. Purchased Quantity may come in multiple lengths.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: GH195-4 Danfoss
Brand: Aeroquip
Series: GH195 Series
Hose Color(s): Blue
Dash Size: -4
Internal Diameter: 0.25in
Outer Diameter: 0.60in
MAWP: 5800
Tubing Construction: AQP Elastomer
Cover Construction: AQP Elastomer
Applicable Specs & Approvals: ABS,Applicable MSHA Standards,BV,DNV,EN45545,EN853,ISO 1436-1,SAE 100R2AT Type S,USCG
Hose Properties:
Application: Petroleum and fire resistant hydraulic fluids, fuel, and lubricating systems. SAE Rating: Meets or exceeds: SAE 100R2 Type S, EN 853 2SN, ISO 1436-1 Type 2SN performance.
Other Ratings: MSHA Accepted, ABS Accepted Tube: CPE
Reinforcement: 2 Steel Braids Cover: Blue CPE
Temperature Range: -40°F to + 300°F
(-40°C to + 150°C)
Part Number Hose ID Nominal Hose OD Max. Operating Pressure Min. Burst Pressure Min. Bend Radius Weight
DN mm in mm in bar psi bar psi mm in kg/m lbs/ft
GH195-4 6 6,4mm 0.25" 15,1mm 0.60" 400,0 bar 5800 psi 1600,0 bar 23200 psi 102,0mm 4.02" 0,40 kg/m 0.27 lbs/ft
GH195-6 10 9,5mm 0.38" 19,2mm 0.75" 345,0 bar 5000 psi 1380,0 bar 20000 psi 127,0mm 5.00" 0,58 kg/m 0.39 lbs/ft
GH195-8 12 12,7mm 0.50" 22,1mm 0.87" 293,0 bar 4250 psi 1172,0 bar 17000 psi 178,0mm 7.01" 0,68 kg/m 0.46 lbs/ft
GH195-10 16 15,9mm 0.62" 25,5mm 1.00" 250,0 bar 3650 psi 1000,0 bar 14600 psi 203,0mm 7.99" 0,80 kg/m 0.54 lbs/ft
GH195-12 19 19,0mm 0.75" 29,5mm 1.16" 215,0 bar 3125 psi 860,0 bar 12500 psi 241,0mm 9.49" 1,00 kg/m 0.67 lbs/ft
GH195-16 25 25,4mm 1.00" 37,8mm 1.49" 175,0 bar 2550 psi 700,0 bar 10200 psi 305,0mm 12.01" 1,44 kg/m 0.97 lbs/ft
GH195-20 31 31,8mm 1.25" 48,5mm 1.91" 155,0 bar 2250 psi 620,0 bar 9000 psi 419,0mm 16.50" 2,38 kg/m 1.60 lbs/ft
GH195-24 38 38,1mm 1.50" 55,1mm 2.17" 125,0 bar 1800 psi 500,0 bar 7250 psi 508,0mm 20.00" 2,59 kg/m 1.74 lbs/ft
GH195-32 51 50,8mm 2.00" 67,8mm 2.67" 105,0 bar 1525 psi 420,0 bar 6100 psi 635,0mm 25.00" 3,38 kg/m 2.27 lbs/ft

Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.

Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
