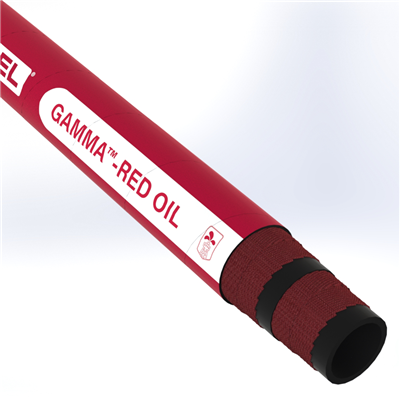

GRO15S1-3.0 by Texcel | GAMMA™-RED OIL Series | Oil Delivery Hose | 3" Hose ID | 100 PSI | Red

GRO15S1-3.0 by Texcel | GAMMA™-RED OIL Series | Oil Delivery Hose | 3" Hose ID | 100 PSI | Red

$16.62 - $2,769.00
$16.62
$14.77
$14.77 - $2,461.33
$14.77

GAMMA™ by Texcel
RED OIL Series | Oil Delivery Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Specifications for Variant SKU: GRO15S1-3.0-100 Texcel | 100 |
Brand: GAMMA™
Series: GAMMA™-RED OIL Series
Hose Color(s): Red
Internal Diameter: 3in
Outer Diameter: 3.50in
Tubing Construction: Nitrile
Cover Construction: Nitrile/EPDM/SBR Blend
Technical Data:
Description: Lightweight oil discharge hose for use in a variety of applications where an oil-resistant, soft-wall discharge hose is required. Tube: Black, fuel and oil-resistant, NBR compound
Cover: Red, oil, weather and abrasion-resistant EPDM/NR/SBR compound Reinforcement: High tensile tire cord plies and static wire
Safety Factor: 3:1 Temperature: -30°F to +180°F
Safety Note: Not recommend for use on reels Branding: TEXCEL® GAMMA™-RED OIL - OIL DELIVERY HOSE 150 PSI W.P.
Part Number Hose ID Hose OD Working Pressure (psi) Lbs./ft
GRO15S1-2.0 2" 2-32/64" 150 psi 0.86 lbs
GRO15S1-3.0 3" 2" 150 psi 1.24 lbs
GRO15S1-4.0 4" 4-32/64" 150 psi 1.73 lbs
