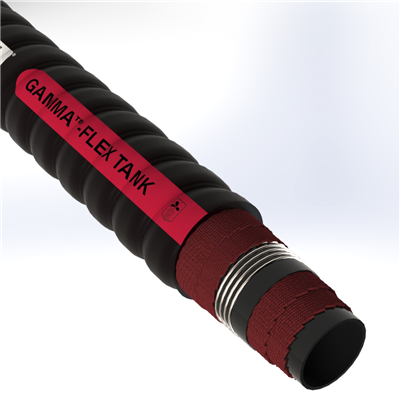

GTA15F1-4.0 by Texcel | GAMMA™-FLEX TANK Series | Corrugated Tank Truck Hose | 4" Hose ID | 150 PSI | 29 in/Hg Vacuum Rated | Black

GTA15F1-4.0 by Texcel | GAMMA™-FLEX TANK Series | Corrugated Tank Truck Hose | 4" Hose ID | 150 PSI | 29 in/Hg Vacuum Rated | Black

$28.01 - $4,668.00
$28.01
$24.90
$24.90 - $4,149.33
$24.90

GAMMA™ by Texcel
FLEX TANK Series | Corrugated Tank Truck Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Specifications for Variant SKU: GTA15F1-4.0-100N Texcel | 100 |
Brand: GAMMA™
Series: GAMMA™-FLEX TANK Series
Hose Color(s): Black
Internal Diameter: 4in
Outer Diameter: 4.56in
Tubing Construction: Nitrile
Cover Construction: Neoprene
Technical Data:
Description: A world-class hose for tank truck, in-plant and oilfield loading operations requiring a strong yet flexible hose. Dramatic flexibility (one-to-one ratio, up to 4" inside diameter) for ease of handling. Tube: Black, Nitrile, 55% aromatics (ORS)
Cover: Black, Neoprene (corrugated) Reinforcement: High tensile tire cord plies; dual helix wire
Safety Factor: 4:1 Temperature: -40°F to +180°F
Branding: TEXCEL® GAMMA™-FLEX TANK - FLEXIBLE TANK TRUCK HOSE 150 PSI W.P. Features: Exceptional flexibility
Part Number Hose ID Hose OD Working Pressure (psi) Vacuum (in./HG) Bend Radius Lbs./ft
GTA15S1-1.5 1-1/2" 1-63/64" 150 psi 29 1.5" 0.77 lbs
GTA15S1-2.0 2" 2-30/64" 150 psi 29 2" 1.02 lbs
GTA15S1-2.5 2-1/2" 3" 150 psi 29 3.5" 1.31 lbs
GTA15S1-3.0 3" 3-32/64" 150 psi 29 3" 1.60 lbs
GTA15S1-4.0 4" 4-36/64" 150 psi 29 4" 2.55 lbs
GTA15S1-5.0 5" 5-46/64" 150 psi 29 6" 3.86 lbs
GTA15S1-6.0 6" 6-48/64" 150 psi 29 10" 4.17 lbs
GTA15S1-8.0 8" 8-52/64" 150 psi 29 10" 6.02 lbs
