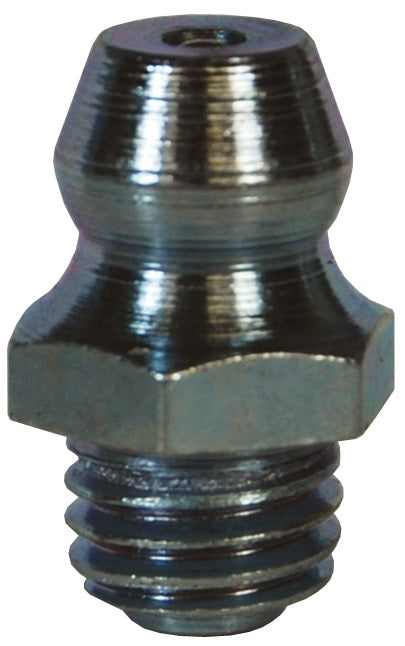

GWHZ000 by Dixon Valve | Grease Whip Zerk Fitting | 1/8 Male NPT x Zerk End | Zinc Plated Steel

GWHZ000 by Dixon Valve | Grease Whip Zerk Fitting | 1/8 Male NPT x Zerk End | Zinc Plated Steel

Save $0.04 Save $0.04
$0.39
$0.39 - $0.39
$0.39
$0.35
$0.35 - $0.35
$0.35

Dixon Valve
Grease Whip Zerk Fitting | Zinc Plated Steel

Designed to easily connect to grease guns.
Specifications for Variant SKU: GWHZ000 Dixon
Series: GWHZ Series
Shape (Orientation): Straight
Ends Configuration: 1/8in Male NPT, Grease Zerk
Material(s): Zink-Plated Steel
Features:
  • A ball check valve that prevents contaminants from entering the lubrication point and allows grease to flow in one direction.
Material:
  • Zinc Plated Steel
Zinc Plated Steel Thread Orientation Overall
Length		 Thread
Length		 Hex
GWHZ000 1/8-27 Male NPT Straight 0.660" 0.260" 0.430
GWHZ400 1/4-28 Male tapered SAE-LT Straight 0.530" 0.200" 0.312

GWHZ045 1/8-27 Male NPT 45° 0.860" 0.280" 0.430
GWHZ445 1/4-28 Male tapered SAE-LT 45° 0.800" 0.200" 0.375

GWHZ090 1/8-27 Male NPT 90° 0.830" 0.310" 0.430
GWHZ490 1/4-28 Male tapered SAE-LT 90° 1.20" 0.200" 0.375
