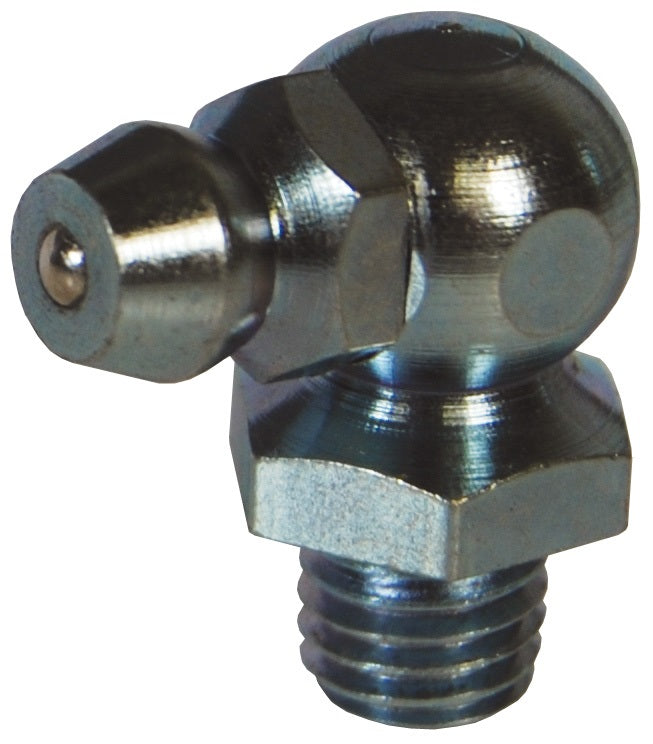

GWHZ090 by Dixon Valve | Grease Whip Zerk Fitting | 90° Elbow | 1/8 Male NPT x Zerk End | Zinc Plated Steel

GWHZ090 by Dixon Valve | Grease Whip Zerk Fitting | 90° Elbow | 1/8 Male NPT x Zerk End | Zinc Plated Steel

Save $0.06 Save $0.06
$0.51
$0.51 - $0.51
$0.51
$0.45
$0.45 - $0.45
$0.45

Dixon Valve
Grease Whip Zerk Fitting | Zinc Plated Steel

Designed to easily connect to grease guns.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: GWHZ090 Dixon
Series: GWHZ Series
Shape (Orientation): 90 Degree
Ends Configuration: 1/8in Male NPT, Grease Zerk
Material(s): Zink-Plated Steel
Features:
  • A ball check valve that prevents contaminants from entering the lubrication point and allows grease to flow in one direction.
Material:
  • Zinc Plated Steel
Zinc Plated Steel Thread Orientation Overall
Length		 Thread
Length		 Hex
GWHZ000 1/8-27 Male NPT Straight 0.660" 0.260" 0.430
GWHZ400 1/4-28 Male tapered SAE-LT Straight 0.530" 0.200" 0.312

GWHZ045 1/8-27 Male NPT 45° 0.860" 0.280" 0.430
GWHZ445 1/4-28 Male tapered SAE-LT 45° 0.800" 0.200" 0.375

GWHZ090 1/8-27 Male NPT 90° 0.830" 0.310" 0.430
GWHZ490 1/4-28 Male tapered SAE-LT 90° 1.20" 0.200" 0.375
