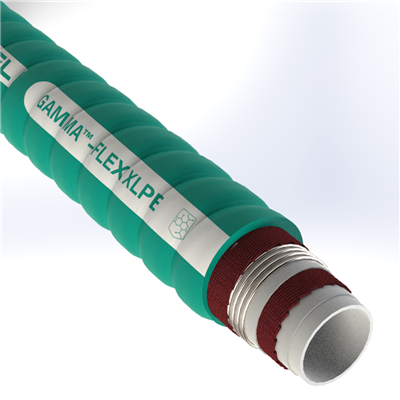

GXL20F1-2.0 by Texcel | GAMMA™-FLEX XLPE Series | Cross-Linked Polyethylene Chemical Hose | 2" Hose ID | 200 PSI | Green

$19.37 - $3,228.00

$19.37

$17.22

$17.22 - $2,869.33

$17.22

GAMMA™ by Texcel
FLEX XLPE Series | Cross-Linked Polyethylene Chemical Hose

Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.

Package Quantity: 100 Units

Quantity

Specifications for Variant SKU: GXL20F1-2.0-100 Texcel \| 100 \|
Brand:	GAMMA™
Series:	GAMMA™-FLEX XLPE Series
Hose Color(s):	Green
Internal Diameter:	2in
Outer Diameter:	2.50in
Tubing Construction:	Polyethylene
Cover Construction:	EPDM

Technical Data:
Description:	Designed to handle a wide range of chemicals, solvents and corrosive liquids in both pressure and suction service.	Tube:	Clear, cross-linked polyethylene
Cover:	Green, EPDM (corrugated)	Reinforcement:	High tensile tire cord plies; dual helix wire
Safety Factor:	4:1	Temperature:	-40°F to +212°F
Branding:	TEXCEL® GAMMA™-FLEX XLPE - CHEMICAL SUCTIOn AND DISCHARGE HOSE 200 PSI W.P. XLPE TUBE	Safety Note :	Temperature rating depends on specific chemical conveyed and concentration
Features:	Exceptional flexibility

Part Number	Hose ID	Hose OD	Working Pressure (psi)	Vacuum (in./HG)	Bend Radius	Lbs./ft
GXL20F1-1.0	1"	1-30/64"	200 psi	29	2.5"	0.56 lbs
GXL20F1-1.5	1-1/2"	1-62/64"	200 psi	29	3"	0.80 lbs
GXL20F1-2.0	2"	2-32/64"	200 psi	29	4"	1.15 lbs
GXL20F1-2.5	2-1/2"	3"	200 psi	29	5"	1.41 lbs
GXL20F1-3.0	3"	3-35/64"	200 psi	29	6"	1.89 lbs
GXL20F1-4.0	4"	4-39/64"	200 psi	29	8"	2.69 lbs
