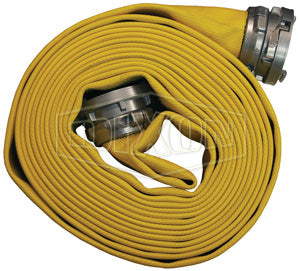

H450Y50SZ Dixon Nitrile Covered Fire Hose - Heavy Duty - Yellow - Coupled - Female x Male Segmented Collar Style Couplings (Aluminum) - 5" Hose and Storz Size - 5-3/8" Bowl Size - 50ft Length

H450Y50SZ Dixon Nitrile Covered Fire Hose - Heavy Duty - Yellow - Coupled - Female x Male Segmented Collar Style Couplings (Aluminum) - 5" Hose and Storz Size - 5-3/8" Bowl Size - 50ft Length

Save $161.26 Save $161.26
$1,451.35
$1,451.35 - $1,451.35
$1,451.35
$1,290.09
$1,290.09 - $1,290.09
$1,290.09

Dixon Fire Fittings
Fire Hose - Nitrile Covered Fire Hose with Storz Style Couplings - Heavy Duty - Yellow - Coupled

Ideal for heavy-duty washdown in refineries and power plants.

Coupled with female and male segmented Storz collar style couplings.
Specifications for Variant SKU: H450Y50SZ Dixon
Series: Fire Hose
Hose Color(s): Yellow
Internal Diameter: 5in
Tubing Construction: Nitrile
Cover Construction: Nitrile
Ends Configuration: 5in Storz, 5in Storz, Some Ends Match
Features:
  • Working pressures can be achieved using appropriate expansion ring couplings.
  • Under no circumstance should the hose be used beyond the working pressure of the fittings to which it is coupled.
  • Assembled hose should be hydrostatically proof tested before use, and thereafter in accordance with NFPA 1962.
Part Number Hose and Storz Size Bowl Working Pressure @
Ambient Temperature
(70 deg. F):		 Proof Pressure @
Ambient Temperature
(70 deg. F):		 Service Test Pressure @
Ambient Temperature
(70 deg. F):		 Length Weight
(Lbs.)
H440Y50SZ 4" 4-3/8" 200 PSI 450 PSI 225 PSI 50 ft 53.0000
H450Y50SZ 5" 5-3/8" 180 PSI 400 PSI 200 PSI 50 ft 64.0000
H450Y100SZ 5" 5-3/8" 180 PSI 400 PSI 200 PSI 100 ft 97.0000
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
