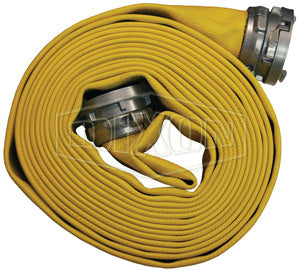

H440Y50SZ Dixon Nitrile Covered Fire Hose - Heavy Duty - Yellow - Coupled - Female x Male Segmented Collar Style Couplings (Aluminum) - 4" Hose and Storz Size - 4-3/8" Bowl Size - 50ft Length

Name: H440Y50SZ Dixon Nitrile Covered Fire Hose - Heavy Duty - Yellow - Coupled - Female x Male Segmented Collar Style Couplings (Aluminum) - 4" Hose and Storz Size - 4-3/8" Bowl Size - 50ft Length
Brand: Dixon
SKU: H440Y50SZ Dixon
Price: 1093.85 USD
Availability: InStock

Save $136.73

$1,230.58

$1,230.58 - $1,230.58

$1,230.58

$1,093.85

$1,093.85 - $1,093.85

$1,093.85

Dixon Fire Fittings
Fire Hose - Nitrile Covered Fire Hose with Storz Style Couplings - Heavy Duty - Yellow - Coupled

Ideal for heavy-duty washdown in refineries and power plants.

Coupled with female and male segmented Storz collar style couplings.

Quantity

Specifications for Variant SKU: H440Y50SZ Dixon
Series:	Fire Hose
Hose Color(s):	Yellow
Internal Diameter:	4in
Tubing Construction:	Nitrile
Cover Construction:	Nitrile
Ends Configuration:	4in Storz, 4in Storz, Some Ends Match

Features:
Working pressures can be achieved using appropriate expansion ring couplings. Under no circumstance should the hose be used beyond the working pressure of the fittings to which it is coupled. Assembled hose should be hydrostatically proof tested before use, and thereafter in accordance with NFPA 1962.

Part Number	Hose and Storz Size	Bowl	Working Pressure @ Ambient Temperature (70 deg. F):	Proof Pressure @ Ambient Temperature (70 deg. F):	Service Test Pressure @ Ambient Temperature (70 deg. F):	Length	Weight (Lbs.)
H440Y50SZ	4"	4-3/8"	200 PSI	450 PSI	225 PSI	50 ft	53.0000
H450Y50SZ	5"	5-3/8"	180 PSI	400 PSI	200 PSI	50 ft	64.0000
H450Y100SZ	5"	5-3/8"	180 PSI	400 PSI	200 PSI	100 ft	97.0000

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
