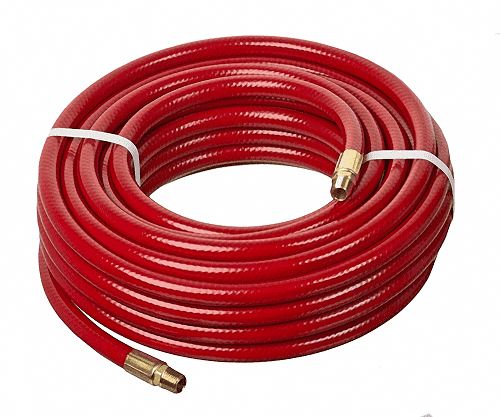

HS1184-06X100 Kuri-Tec by Kuriyama | HS1184 Series | Utility-Grade Air Tool Hose Assembly | Red | 3/8" ID | .600" OD | PVC | 100ft Length

HS1184-06X100 Kuri-Tec by Kuriyama | HS1184 Series | Utility-Grade Air Tool Hose Assembly | Red | 3/8" ID | .600" OD | PVC | 100ft Length

Save $14.56 Save $14.56
$50.97
$50.97 - $50.97
$50.97
$36.41
$36.41 - $36.41
$36.41

Kuriyama Kuri Tec® HS1184 Series Utility-Grade PVC Air Tool Hose Assemblies - Red

Specifications for Variant SKU: HS1184-06X100 Kuriyama
Brand: Kuri Tec
Series: HS1184 Series
Hose Color(s): Red
Internal Diameter: 0.375in
Outer Diameter: 0.60in
Tubing Construction: PVC
Ends Configuration: 3/8in Male NPT, 3/8in Male NPT, Some Ends Match

SPECIFICATIONS

Application: Air Tools SAE Rating: N/A
Other Ratings: N/A Tube: PVC
Reinforcement: N/A Cover: N/A
Temperature Range: +14 deg. F (-10 deg. C) to +150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Note: Hose Assembly are furnished with the following fittings:
    • 1/4" ID - 1/4" X 1/4"M NPT
    • 3/8" ID - 3/8" X 1/4"M NPT
Part Number Nominal ID Nominal OD Working Pressure Assembled Lengths Approx Weight per Pkg
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI)
HS1184-04X100 1/4" 6.5mm .475" 12.1mm 300 PSI 100 ft. 7.4 lbs.
HS1184-04X25 1/4" 6.5mm .475" 12.1mm 300 PSI 25 ft. 1.9 lbs.
HS1184-04X50 1/4" 6.5mm .475" 12.1mm 300 PSI 50 ft. 3.7 lbs.
HS1184-06X100 3/8" 9.5mm .600" 15.2mm 300 PSI 100 ft. 10.2 lbs.
HS1184-06X25 3/8" 9.5mm .600" 15.2mm 300 PSI 25 ft. 2.6 lbs.
HS1184-06X50 3/8" 9.5mm .600" 15.2mm 300 PSI 50 ft. 5.1 lbs.
Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
