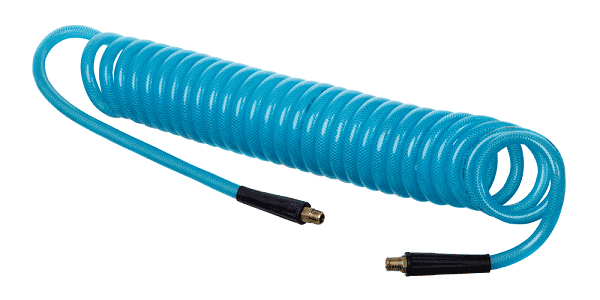

HSC2960-04X50 Kuri-Tec by Kuriyama | HSC2960 Series | Self-Store Reinforced Hose Assembly | Aqua Tint | 1/4" ID | .395" OD | Polyurethane | 50ft Length

HSC2960-04X50 Kuri-Tec by Kuriyama | HSC2960 Series | Self-Store Reinforced Hose Assembly | Aqua Tint | 1/4" ID | .395" OD | Polyurethane | 50ft Length

Save $35.82 Save $35.82
$125.38
$125.38 - $125.38
$125.38
$89.56
$89.56 - $89.56
$89.56

Kuriyama Kuri Tec® Series HSC2960 Polyurethane Self-Store Reinforced Hose Assembly

Specifications for Variant SKU: HSC2960-04X50 Kuriyama
Brand: Kuri Tec
Series: HSC2960 Series
Hose Color(s): Aqua
Internal Diameter: 0.25in
Outer Diameter: 0.395in
Tubing Construction: Polyurethane
Ends Configuration: 1/4in Male NPT, 1/4in Male NPT, Some Ends Match

SPECIFICATIONS

Application: N/A SAE Rating: N/A
Other Ratings: N/A Tube: N/A
Reinforcement: N/A Cover: N/A
Temperature Range: -40 deg. F (-40 deg. C) to +185 deg. F (+85 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • N/A
Part Number Nominal ID Nominal OD Working Pressure Working Length Coil OD Standard Package Approx Weight per Pkg
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI) (ft.) (in)
HSC2960-04X15 1/4" 6.5mm .395" 9.5mm 225 PSI 125 PSI 12 ft. 2 in. 10 6.5 lbs.
HSC2960-04X25 1/4" 6.5mm .395" 9.5mm 225 PSI 125 PSI 12 ft. 2 in. 10 10 lbs.
HSC2960-04X50 1/4" 6.5mm .395" 9.5mm 225 PSI 125 PSI 40 ft. 2 in. 1 2 lbs.
HSC2960-06X15 3/8" 9.5mm .570" 14.5mm 225 PSI 125 PSI 12 ft. 3 in. 5 7 lbs.
HSC2960-06X25 3/8" 9.5mm .570" 14.5mm 225 PSI 125 PSI 20 ft. 3 in. 5 11 lbs.
HSC2960-06X50 3/8" 9.5mm .570" 14.5mm 225 PSI 125 PSI 40 ft. 3 in. 1 4 lbs.
Note: Each length of assembled tubing or hose includes a 4" pigtail and a 20" whip end, assembled to 1/4" or optional 3/8" (priced upon request) male NPT permanent crimped swivel brass fittings with rubber bend restrictors. Working length is 80% of nominal length shown. 5/16" & 1/2" ID size tubing is priced upon request. Check for availability. Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
