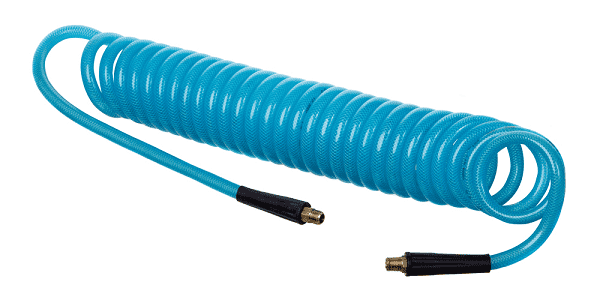

HSC2960-06X25 Kuri-Tec by Kuriyama | HSC2960 Series | Self-Store Reinforced Hose Assembly | Aqua Tint | 3/8" ID | .570" OD | Polyurethane | 25ft Length

HSC2960-06X25 Kuri-Tec by Kuriyama | HSC2960 Series | Self-Store Reinforced Hose Assembly | Aqua Tint | 3/8" ID | .570" OD | Polyurethane | 25ft Length

Save $32.68 Save $32.68
$114.38
$114.38 - $114.38
$114.38
$81.70
$81.70 - $81.70
$81.70

Kuriyama Kuri Tec® Series HSC2960 Polyurethane Self-Store Reinforced Hose Assembly

Specifications for Variant SKU: HSC2960-06X25 Kuriyama
Brand: Kuri Tec
Series: HSC2960 Series
Hose Color(s): Aqua
Internal Diameter: 0.375in
Outer Diameter: 0.57in
Tubing Construction: Polyurethane
Ends Configuration: 3/8in Male NPT, 3/8in Male NPT, Some Ends Match

SPECIFICATIONS

Application: N/A SAE Rating: N/A
Other Ratings: N/A Tube: N/A
Reinforcement: N/A Cover: N/A
Temperature Range: -40 deg. F (-40 deg. C) to +185 deg. F (+85 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • N/A
Part Number Nominal ID Nominal OD Working Pressure Working Length Coil OD Standard Package Approx Weight per Pkg
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI) (ft.) (in)
HSC2960-04X15 1/4" 6.5mm .395" 9.5mm 225 PSI 125 PSI 12 ft. 2 in. 10 6.5 lbs.
HSC2960-04X25 1/4" 6.5mm .395" 9.5mm 225 PSI 125 PSI 12 ft. 2 in. 10 10 lbs.
HSC2960-04X50 1/4" 6.5mm .395" 9.5mm 225 PSI 125 PSI 40 ft. 2 in. 1 2 lbs.
HSC2960-06X15 3/8" 9.5mm .570" 14.5mm 225 PSI 125 PSI 12 ft. 3 in. 5 7 lbs.
HSC2960-06X25 3/8" 9.5mm .570" 14.5mm 225 PSI 125 PSI 20 ft. 3 in. 5 11 lbs.
HSC2960-06X50 3/8" 9.5mm .570" 14.5mm 225 PSI 125 PSI 40 ft. 3 in. 1 4 lbs.
Note: Each length of assembled tubing or hose includes a 4" pigtail and a 20" whip end, assembled to 1/4" or optional 3/8" (priced upon request) male NPT permanent crimped swivel brass fittings with rubber bend restrictors. Working length is 80% of nominal length shown. 5/16" & 1/2" ID size tubing is priced upon request. Check for availability. Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
