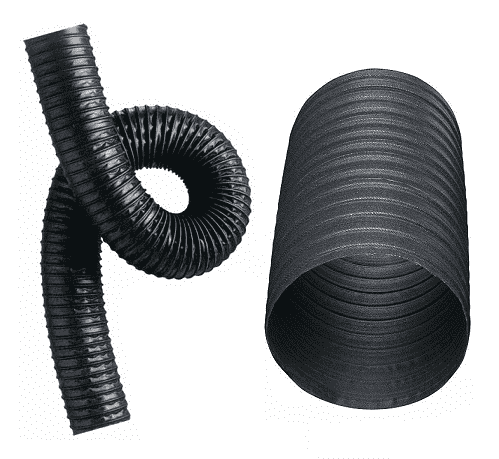

HTNP2-350X25 by Kuriyama | Series HTNP | Neo-Duct Ducting Hose | Black | ID: 3-1/2" | 24 PSI | Neoprene Coated | 25ft Length

HTNP2-350X25 by Kuriyama | Series HTNP | Neo-Duct Ducting Hose | Black | ID: 3-1/2" | 24 PSI | Neoprene Coated | 25ft Length

Save $19.17 Save $19.17
$191.17
$191.17 - $191.17
$191.17
$172.00
$172.00 - $172.00
$172.00

Kuriyama Ducting Hose - Neo-Duct® Neoprene Ducting Hose Series HTNP2 - Black

Package Quantity: 25 FT

Specifications for Variant SKU: HTNP2-350X25 Kuriyama | 25 |
Brand: FLEXAIR, Neo-Duct
Series: HTNP2 Series
Hose Color(s): Black
Internal Diameter: 3.50in
Tubing Construction: Neoprene Coated Polyester
Applicable Specs & Approvals: RoHS Compliant

SPECIFICATIONS

Application: Dust collection, Air movement, Fume control, Light Material Handling SAE Rating: N/A
Other Ratings: UL94V-O Tube: Neoprene-coated two-ply polyester
Reinforcement: N/A Cover: N/A
Temperature Range: -65 deg. F (-54 deg. C) to 250 deg. F (+127 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Double-ply construction - works extremely well in both positive and negative pressure applications, offers extreme flexibility and compressibility, combined with excellent crush-resistance and tensile strength. Recommended for all air handling applications, dust and fume control and light material handling.
  • Neoprene coating with polyester fabric construction - provides excellent flexibility, will not rot
  • Manufactured to meet UL94V-O rating
  • Standard packaging: 25' lengths in cartons
Part Number Nominal ID Min. Bend. Radius Max Working* Pressure Length Weight
(in.) (mm) (in.) (mm) PSI (lbs/ft)
HTNP2-150X25 1-1/2" 38.1mm 2.6" 66.0mm 32 PSI 25ft .16 lbs
HTNP2-200X018 2" 50.8mm 3.5" 88.9mm 30 PSI 18ft .16 lbs
HTNP2-200X055 2" 50.8mm 3.5" 88.9mm 30 PSI 55ft .16 lbs
HTNP2-200X25 2" 50.8mm 3.5" 88.9mm 30 PSI 25ft .16 lbs
HTNP2-250X25 2-1/2" 63.5mm 4.0" 101.6mm 28 PSI 25ft .28 lbs
HTNP2-300X25 3" 76.2mm 5.0" 127.0mm 25 PSI 25ft .33 lbs
HTNP2-350X25 3-1/2" 88.9mm 5.7" 144.8mm 24 PSI 25ft .42 lbs
HTNP2-400X25 4" 101.6mm 6.5" 165.1mm 23 PSI 25ft .48 lbs
HTNP2-500X25 5" 127.0mm 7.5" 190.5mm 22 PSI 25ft .61 lbs
HTNP2-600X25 6" 152.4mm 9.0" 228.6mm 21 PSI 25ft .70 lbs
HTNP2-700X25 7" 177.8mm 9.5" 241.3mm 20 PSI 25ft .92 lbs
HTNP2-800X25 8" 203.2mm 10.0" 254.0mm 19 PSI 25ft 1.04 lbs
HTNP2-250X25 10" 254mm 11.0" 279.4mm 18 PSI 25ft 1.36 lbs
HTNP2-1200X25 12" 304.8mm 13.5" 342.9mm 17 PSI 25ft 1.85 lbs
HTNP2-1400X25 14" 355.6mm 15.5" 393.7mm 16 PSI 25ft 2.10 lbs
HTNP2-1600X25 16" 406.4mm 18.5" 469.9mm 15 PSI 25ft 2.40 lbs
HTNP2-1800X25 18" 457.2mm 22.0" 558.8mm 6 PSI 25ft 2.70 lbs
HTNP2-2000X25 20" 508.0mm 24.0" 609.6mm 4 PSI 25ft 3.00 lbs
* Minimum burst pressure 4:1 safety factor for ID sizes 1" to 2" and 3:1 for ID sizes 2 1/2" to 3".
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
