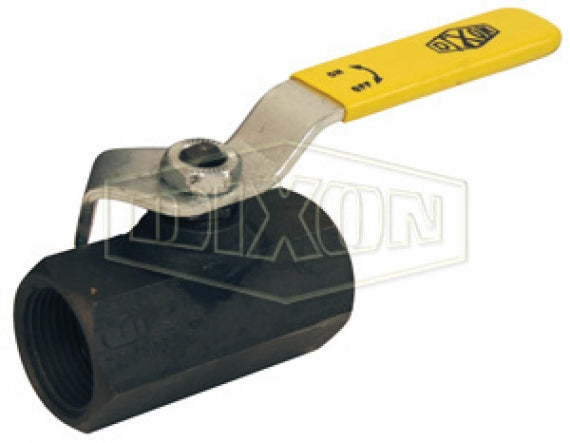

IBV200 by Dixon Valve | Ball Valve | Standard Port | 2" Female NPT x 2" Female NPT | Carbon Steel

IBV200 by Dixon Valve | Ball Valve | Standard Port | 2" Female NPT x 2" Female NPT | Carbon Steel

Save $16.89 Save $16.89
$253.92
$253.92 - $253.92
$253.92
$237.03
$237.03 - $237.03
$237.03

Dixon Valve & Coupling
Ball Valve | Carbon Steel

For control of air, water, oil, and gas in hose or pipe lines.
Specifications for Variant SKU: IBV200 Dixon
Shape (Orientation): Straight
Ends Configuration: 2in Female NPT, 2in Female NPT, Some Ends Match
Material(s): Carbon Steel
Seal Material(s): RPTFE
Features:
  • Blow-out proof stem.
  • Adjustable packing gland.
Materials:
  • Carbon steel body.
  • Chromium plated ball.
  • RPTFE seat and seal.
Specifications:
  • Pressure rating: 150 PSI saturated steam.
Part Number Female NPT x Female NPT PSI Port
IBV25 1/4" 2000 PSI Full
IBV38 3/8" 2000 PSI Full
IBV50 1/2" 2000 PSI Standard
IBV75 3/4" 2000 PSI Standard
IBV100 1" 2000 PSI Standard
IBV125 1-1/4" 1500 PSI Standard
IBV150 1-1/2" 1500 PSI Standard
IBV200 2" 1500 PSI Standard
