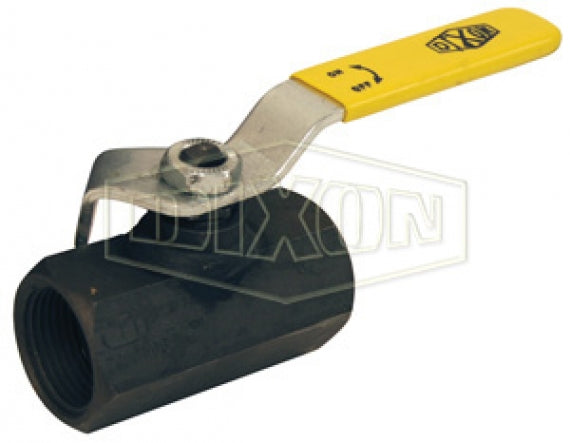

IBV25 by Dixon Valve | Ball Valve | Full Port | 1/4" Female NPT x 1/4" Female NPT | Carbon Steel

IBV25 by Dixon Valve | Ball Valve | Full Port | 1/4" Female NPT x 1/4" Female NPT | Carbon Steel

Save $37.38 Save $37.38
$93.45
$93.45 - $93.45
$93.45
$56.07
$56.07 - $56.07
$56.07

Dixon Valve & Coupling
Ball Valve | Carbon Steel

For control of air, water, oil, and gas in hose or pipe lines.
Specifications for Variant SKU: IBV25 Dixon
Shape (Orientation): Straight
Ends Configuration: 1/4in Female NPT, 1/4in Female NPT, Some Ends Match
Material(s): Carbon Steel
Seal Material(s): RPTFE
Features:
  • Blow-out proof stem.
  • Adjustable packing gland.
Materials:
  • Carbon steel body.
  • Chromium plated ball.
  • RPTFE seat and seal.
Specifications:
  • Pressure rating: 150 PSI saturated steam.
Part Number Female NPT x Female NPT PSI Port
IBV25 1/4" 2000 PSI Full
IBV38 3/8" 2000 PSI Full
IBV50 1/2" 2000 PSI Standard
IBV75 3/4" 2000 PSI Standard
IBV100 1" 2000 PSI Standard
IBV125 1-1/4" 1500 PSI Standard
IBV150 1-1/2" 1500 PSI Standard
IBV200 2" 1500 PSI Standard
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
