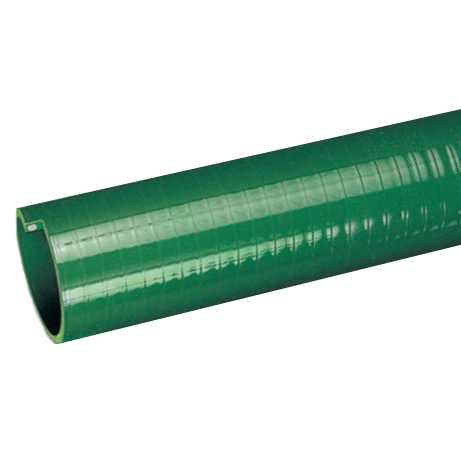

J250X100 Kuriyama Tigerflex J Series Standard Duty PVC Suction Hose - 2-1/2" - 100ft

J250X100 Tigerflex by Kuriyama | J Series | Standard Duty Suction Hose | 2-1/2" ID | PVC | 100ft Length

Save $49.48 Save $49.48
$494.81
$494.81 - $494.81
$494.81
$445.33
$445.33 - $445.33
$445.33

Kuriyama Tigerflex J™ Series Standard Duty PVC Suction Hose


Package Quantity: 100 FT

Specifications for Variant SKU: J250X100 Kuriyama | 100 |
Brand: Tigerflex
Series: J Series
Hose Color(s): Green
Internal Diameter: 2.50in
Outer Diameter: 2.87in
Tubing Construction: PVC
Applicable Specs & Approvals: Applicable MSHA Standards, RoHS Compliant

SPECIFICATIONS

Application: Agricultural liquid fertilizer, Air seeder lines, Drain lines, Irrigation lines, Mining applications (MSHA), Pumps, trash, Rock dusting, Water suction - standard duty, Rental and Construction Dewatering SAE Rating: N/A
Other Ratings: N/A Tube: PVC
Reinforcement: Rigid PVC Helix Cover: N/A
Temperature Range: -4 deg. F (-20 deg. C) to 150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications MSHA(09), RoHS(10)
Other Features:
  • MSHA(09) Approved (J Series only) - Approved by the Mine Safety and Health Administration for flame-resistance for use in underground mines as water transfer hose.
  • Smooth Outer Cover (Sizes 3/4" - 5") - Provides increased pressure rating and smooth surface for banding.
  • Convoluted Outer Cover (Sizes 6" & 8") - Provides increased hose flexibility.
Part Number ID ID OD OD Working Pressure (PSI) Vacuum Rating (in. Hg) Approx. Bending Radius Standard Length Weight (Lbs/Ft)
(in.) (mm) (in.) (mm) 68 deg. F 104 deg. F 68 deg. F 104 deg. F (in @ 68 deg. F) (ft.)
J075X100 3/4" 19.0mm 1.01" 25.6mm 110 PSI 70 PSI 28 in.Hg 26 in.Hg 3" 100ft 0.19 lbs
J100X100 1" 25.4mm 1.26" 32.0mm 85 PSI 60 PSI 28 in. Hg 26 in .Hg 3" 100ft 0.26 lbs
J125X100 1-1/4" 31.7mm 1.56" 39.6mm 85 PSI 60 PSI 28 in. Hg 24 in .Hg 4" 100ft 0.35 lbs
J150X100 1-1/2" 38.1mm 1.83" 46.5mm 70 PSI 50 PSI 28 in. Hg 24 in. Hg 5" 100ft 0.48 lbs
J200X100 2" 50.8mm 2.32" 59.0mm 65 PSI 45 PSI 28 in. Hg 24 in. Hg 7" 100ft 0.66 lbs
J250X100 2-1/2" 63.5mm 2.87" 73.0mm 65 PSI 45 PSI 28 in. Hg 24 in. Hg 8" 100ft 0.87 lbs
J300X100 3" 76.2mm 3.43" 87.0mm 60 PSI 40 PSI 28 in. Hg 22 in. Hg 10" 100ft 1.24 lbs
J400X100 4" 101.6mm 4.50" 114.7mm 50 PSI 35 PSI 28 in. Hg 22 in. Hg 15" 100ft 1.85 lbs
J600X100 6" 152.4mm 6.75" 171.4mm 40 PSI 25 PSI 28 in. Hg 20 in. Hg 30" 100ft 3.39 lbs
NOTE: Service life may vary depending on operating conditions and type of material being conveyed. *Actual service temperature range is application dependent.
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
