K1154-10X300 Kuri-Tec by Kuriyama | K1154 Series | General Purpose Air & Water Hose | Red | 5/8" ID | .895" OD | PVC | 300ft Length

K1154-10X300 Kuri-Tec by Kuriyama | K1154 Series | General Purpose Air & Water Hose | Red | 5/8" ID | .895" OD | PVC | 300ft Length

Save $32.11 Save $32.11
$311.11
$311.11 - $311.11
$311.11
$279.00
$279.00 - $279.00
$279.00

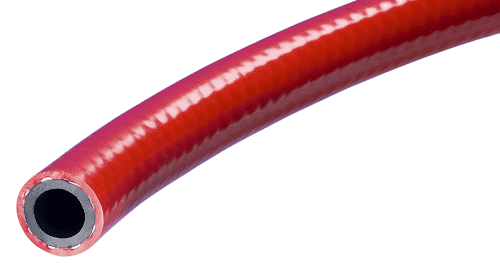

Kuriyama Kuri Tec® Series K1154 General Purpose PVC Air & Water Hose - Red A general purpose PVC air and Water Red Hose for in plant and outdoor applications in temperate climate conditions.

Package Quantity: 300 FT

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: K1154-10X300 Kuriyama | 300 |
Brand: Kuri Tec
Series: K1154 Series
Hose Color(s): Red
Internal Diameter: 0.625in
Outer Diameter: 0.895in
Tubing Construction: PVC
Cover Construction: PVC
Special Properties: Pin Pricked Hose Cover

SPECIFICATIONS

Application: Transfer of air, water and mild water soluble chemicals, Ideal for in-plant applications that require an economical general purpose hose, Excellent air supply line for pneumatic tools and paint spray systems. SAE Rating: N/A
Other Ratings: N/A Tube: Black PVC compound
Reinforcement: High tensile strength yarn Cover: PVC compound
Temperature Range: +14 deg. F (-10 deg. C) to +150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Economical, flexible and lightweight.
  • Excellent abrasion resistance.
  • U. V. and weather resistant.
  • Non-marking pin-pricked cover.
  • Silicone-free core and cover.
  • Complies with RMA's Class B designation for medium/high oil resistance.
  • One-piece lengths.
Part Number Nominal ID Nominal OD Working Pressure Standard Lengths Approx Weight per Pkg
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI)
K1154-04X100 1/4" 6.4mm .500" 12.7mm 300 PSI 150 PSI 100 ft. 8 lbs.
K1154-04X500 1/4" 6.4mm .500" 12.7mm 300 PSI 150 PSI 500 ft. 44 lbs.
K1154-05X100 5/16" 7.9 mm .625" 15.9mm 300 PSI 150 PSI 100 ft. 13 lbs.
K1154-05X500 5/16" 7.9 mm .625" 15.9mm 300 PSI 150 PSI 500 ft. 68 lbs.
K1154-06X100 3/8" 9.5mm .625" 15.9mm 300 PSI 150 PSI 100 ft. 11 lbs.
K1154-06X500 3/8" 9.5mm .625" 15.9mm 300 PSI 150 PSI 500 ft. 56 lbs.
K1154-08X100 1/2" 12.7mm .750" 19.1mm 300 PSI 150 PSI 100 ft. 14 lbs.
K1154-08X500 1/2" 12.7mm .750" 19.1mm 300 PSI 150 PSI 500 ft. 77 lbs.
K1154-10X100 5/8" 15.9mm .895" 22.6mm 200 PSI 100 PSI 100 ft. 18 lbs.
K1154-10X300 5/8" 15.9mm .895" 22.6mm 200 PSI 100 PSI 300 ft. 60 lbs.
K1154-12X100 3/4" 19.1mm 1.030" 26.2mm 200 PSI 75 PSI 100 ft. 22 lbs.
K1154-12X300 3/4" 19.1mm 1.030" 26.2mm 200 PSI 75 PSI 300 ft. 72 lbs.
K1154-16X100 1" 25.4mm 1.313" 33.3mm 150 PSI 75 PSI 100 ft. 31 lbs.
K1154-16X300 1" 25.4mm 1.313" 33.3mm 150 PSI 75 PSI 300 ft. 105 lbs.
Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
