K3150-MM10X100 Kuri-Tec by Kuriyama | Clearbraid K3150 Series | RF Standard Wall Food & Beverage Clear Hose | .394" ID | .630" OD | PVC | 100ft Length

K3150-MM10X100 Kuri-Tec by Kuriyama | Clearbraid K3150 Series | RF Standard Wall Food & Beverage Clear Hose | .394" ID | .630" OD | PVC | 100ft Length

Save $8.49 Save $8.49
$88.89
$88.89 - $88.89
$88.89
$80.40
$80.40 - $80.40
$80.40

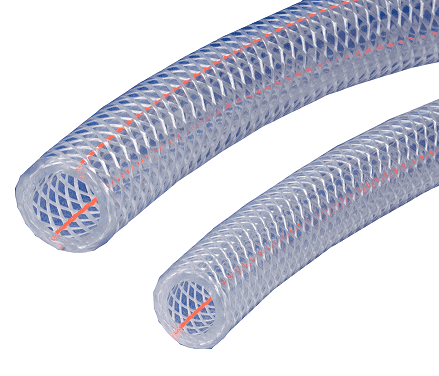

Kuriyama Kuri-Tec Clearbraid® - K3150 Series RF Standard Wall - PVC Food & Beverage Hose



A lightweight standard wall crystal clear yarn reinforced hose suitable for a wide variety of food and beverage applications.

Package Quantity: 100 FT

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: K3150-MM10X100 Kuriyama | 100 |
Brand: Kuri Tec
Series: K3150 Series
Hose Color(s): White/Off-White & Clear/Semi-Clear
Internal Diameter: 0.394in
Outer Diameter: 0.630in
Tubing Construction: PVC
Cover Construction: PVC
Applicable Specs & Approvals: Applicable 3-A Sanitary Standards, Applicable FDA Requirements, Applicable NSF Requirements, Applicable USDA Requirements, RoHS Compliant, UL94HB Flammability Rating, USP - Class VI

SPECIFICATIONS

Application: Food & beverage dispensing, Air and water lines, Deionized water, Powdered food products, Liquid food products, Potable water transfer, Air breathing lines, Pneumatic lines, Packaging machines. SAE Rating: N/A
Other Ratings: N/A Tube: Crystal clear PVC compound, formulated with ingredients in compliance with applicable FDA(03) requirements, meets USDA(17), 3A(01), NSF(13), UL(16), RoHS(15) and USP(18) Class VI criteria.
Reinforcement: Reinforced with spiraled polyester yarn and longitudinal orange tracer yarns for identification. Cover: N/A
Temperature Range: 25 deg. F (-4 deg. C) to +150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications 3A(01), FDA(03), NSF(13), RoHS(15), UL(16), USDA(17), USP(18)
Other Features:
  • Constructed with non-toxic compounds.
  • NSF-51 certified material.
  • Crystal clear - allows visual confirmation of product flow.
  • Longitudinally-reinforced to reduce elongation under pressure.
  • Light weight.
  • Self-extinguishing.
  • Non-marking.
  • Silicone-free.
  • Non-conductive.
  • One-piece lengths.
  • Resistant to chemicals (see chemical-resistance chart).
  • Compound hardness 73±3 Shore "A".
Part Number Nominal ID Nominal OD Working Pressure Standard Lengths Approx Weight per Pkg
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI) Coils
K3150-03X100 3/16" 4.8mm .375" 9.5mm 250 PSI 150 PSI 100 ft. 4 lbs.
K3150-03X300 3/16" 4.8mm .375" 9.5mm 250 PSI 150 PSI 300 ft. 13 lbs.
K3150-04X100 1/4" 6.5mm .438" 11.1mm 250 PSI 150 PSI 100 ft. 6 lbs.
K3150-04X300 1/4" 6.5mm .438" 11.1mm 250 PSI 150 PSI 300 ft. 17 lbs.
K3150-05X100 5/16" 7.9mm .531" 13.5mm 250 PSI 135 PSI 100 ft. 8 lbs.
K3150-05X300 5/16" 7.9mm .531" 13.5mm 250 PSI 135 PSI 300 ft. 24 lbs.
K3150-06X100 3/8" 9.5mm .594" 15.1mm 225 PSI 125 PSI 100 ft. 9 lbs.
K3150-06X300 3/8" 9.5mm .594" 15.1mm 225 PSI 125 PSI 300 ft. 27 lbs.
K3150-08X100 1/2" 12.7mm .750" 19.1mm 200 PSI 100 PSI 100 ft. 13 lbs.
K3150-08X300 1/2" 12.7mm .750" 19.1mm 200 PSI 100 PSI 300 ft. 40 lbs.
K3150-08X600R 1/2" N/A N/A N/A N/A N/A 600 ft. N/A
K3150-10X100 5/8" 15.9mm .891" 22.6mm 200 PSI 100 PSI 100 ft. 18 lbs.
K3150-10X200 5/8" 15.9mm .891" 22.6mm 200 PSI 100 PSI 200 ft. 35 lbs.
K3150-12X100 3/4" 19.1mm 1.031" 26.2mm 150 PSI 85 PSI 100 ft. 22 lbs.
K3150-12X200 3/4" 19.1mm 1.031" 26.2mm 150 PSI 85 PSI 200 ft. 43 lbs.
K3150-12X825R 3/4" N/A N/A N/A N/A N/A 825 ft. N/A
K3150-16X100 1" 25.4mm 1.300" 33.0mm 125 PSI 75 PSI 100 ft. 30 lbs.
K3150-16X200 1" 25.4mm 1.300" 33.0mm 125 PSI 75 PSI 200 ft. 59 lbs.
K3150-16X600R 1" N/A N/A N/A N/A N/A 600 ft. N/A
K3150-16X750R 1" N/A N/A N/A N/A N/A 750 ft. N/A
K3150-20X100 1-1/4" 31.8mm 1.620" 41.1mm 100 PSI 55 PSI 100 ft. 45 lbs.
K3150-20X50 1-1/4" 31.8mm 1.620" 41.1mm 100 PSI 55 PSI 50 ft. 23 lbs.
K3150-24X100 1-1/2" 38.1mm 1.938" 49.2mm 100 PSI 50 PSI 100 ft. 64 lbs.
K3150-24X50 1-1/2" 38.1mm 1.938" 49.2mm 100 PSI 50 PSI 50 ft. 32 lbs.
K3150-32X100 2" 50.8mm 2.490" 63.2mm 75 PSI 35 PSI 100 ft. 94 lbs.
K3150-32X50 2" 50.8mm 2.490" 63.2mm 75 PSI 35 PSI 50 ft. 47 lbs.
K3150-MM04X100 .157" 4.0mm .354" 9.0mm 250 PSI 150 PSI 100 ft. 4 lbs.
K3150-MM06X100 .236" 6.0mm .433" 11.0mm 250 PSI 150 PSI 100 ft. 6 lbs.
K3150-MM08X100 .315" 8.0mm .531" 13.5mm 250 PSI 135 PSI 100 ft. 8 lbs.
K3150-MM10X100 .394" 10.0mm .630" 16.0mm 225 PSI 125 PSI 100 ft. 10 lbs.
K3150-MM12X100 .472" 12.0mm .709" 18.0mm 200 PSI 100 PSI 100 ft. 12 lbs.
K3150-MM19X100 .748" 19.0mm 1.024" 26.0mm 150 PSI 85 PSI 100 ft. 21 lbs.
Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Use of compression fittings with Kuri Tec Clearbraid® yarn-reinforced hose is not recommended. Hose claims involving use of these fittings will be disallowed. CLEARBRAID® is a registered trademark of Accuflex Industrial Hose, Ltd. and is used under license by Kuriyama of America, Inc.
