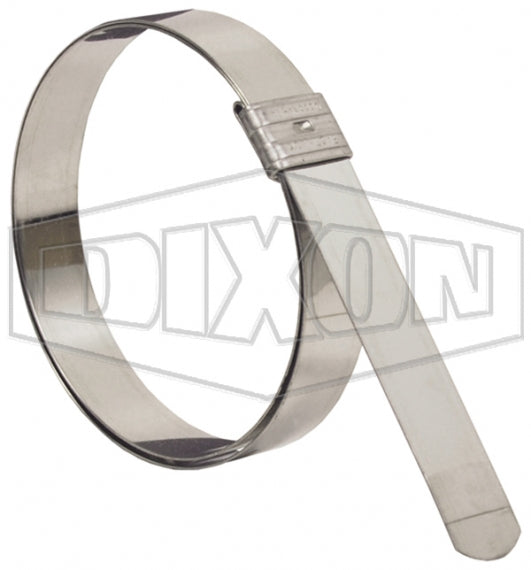

K32 by Dixon Valve | K-Series | Universal Pre-Formed Center Punch Band Clamp | 5/8" Band Width | 8" Clamp ID | Galvanized Steel Band & Buckle

K32 by Dixon Valve | K-Series | Universal Pre-Formed Center Punch Band Clamp | 5/8" Band Width | 8" Clamp ID | Galvanized Steel Band & Buckle | Box of 25

Save $10.17 Save $10.17
$91.50
$91.50 - $91.50
$91.50
$81.33
$81.33 - $81.33
$81.33

Dixon Valve
Universal Pre-Formed Center Punch Band Clamp | K-Series


Package Quantity: 25 EA

Specifications for Variant SKU: K32 Dixon | 25 |
Series: K-Series
Material(s): Galvanized Steel
Clamp Thickness: 0.03
Clamp Width: 0.625
Maximum Clamp I.D.: 8
Installation Tools:
  • Can be center punched or rolled over.
  • Fast-Lok™ tools: F1, F40, F100
  • Super Strap Tools: 51960 screw action with 51970 adapter
  • Bandit®: S100 air tool with S180 Jr. head, C-001 hand tool with J001 Jr. adapter, S350 air tool with S260 Jr. head, T-240 for 3/8" only or T-250 for 3/8" and 5/8", S-38 for 3/8" and 5/8", J-102 Pok-It™ for 3/8" only
  • Punch-Lok® tools: P-1000 for 3/8" and 5/8", P-3000 for 3/8" only, P-38 for 3/8" and 5/8"
Materials:
  • On stainless clamps, bands are 300-series stainless steel, buckles are 302-series stainless steel.
Part Number Material Band Width Clamp ID Band Thickness
KS3 Stainless Steel 3/8" 13/16" .025"
KS311 Stainless Steel 3/8" 1-3/8" .025"
KS4 Stainless Steel 5/8" 1" .030"
KS5 Stainless Steel 5/8" 1-1/4" .030"
KS6 Stainless Steel 5/8" 1-1/2" .030"
KS7 Stainless Steel 5/8" 1-3/4" .030"
KS8 Stainless Steel 5/8" 2" .030"
KS9 Stainless Steel 5/8" 2-1/4" .030"
KS10 Stainless Steel 5/8" 2-1/2" .030"
KS11 Stainless Steel 5/8" 2-3/4" .030"
KS12 Stainless Steel 5/8" 3" .030"
KS14 Stainless Steel 5/8" 3-1/2" .030"
KS16 Stainless Steel 5/8" 4" .030"
KS18 Stainless Steel 5/8" 4-1/2" .030"
KS20 Stainless Steel 5/8" 5" .030"
KS24 Stainless Steel 5/8" 6" .030"
KS28 Stainless Steel 5/8" 7" .030"
KS32 Stainless Steel 5/8" 8" .030"

K3 Galvanized Steel 3/8" 13/16" .025"
K311 Galvanized Steel 3/8" 1-3/8" .025"
K4 Galvanized Steel 5/8" 1" .031"
K5 Galvanized Steel 5/8" 1-1/4" .031"
K6 Galvanized Steel 5/8" 1-1/2" .031"
K7 Galvanized Steel 5/8" 1-3/4" .031"
K8 Galvanized Steel 5/8" 2" .031"
K9 Galvanized Steel 5/8" 2-1/4" .031"
K10 Galvanized Steel 5/8" 2-1/2" .031"
K11 Galvanized Steel 5/8" 2-3/4" .031"
K12 Galvanized Steel 5/8" 3" .031"
K14 Galvanized Steel 5/8" 3-1/2" .031"
K16 Galvanized Steel 5/8" 4" .031"
K18 Galvanized Steel 5/8" 4-1/2" .031"
K20 Galvanized Steel 5/8" 5" .031"
K24 Galvanized Steel 5/8" 6" .031"
K28 Galvanized Steel 5/8" 7" .031"
K32 Galvanized Steel 5/8" 8" .031"
