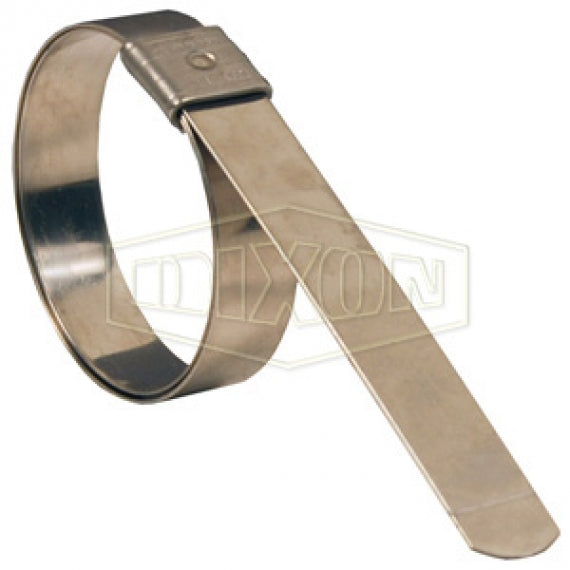

KS28 by Dixon Valve | K-Series | Universal Pre-Formed Center Punch Band Clamp | 5/8" Band Width | 7" Clamp ID | 300 Stainless Steel Band | 302 Stainless Steel Buckle | Box of 25

Save $103.55

$258.88

$258.88 - $258.88

$258.88

$155.33

$155.33 - $155.33

$155.33

Dixon Valve
Universal Pre-Formed Center Punch Band Clamp | K-Series

Package Quantity: 25 EA

Specifications for Variant SKU: KS28 Dixon \| 25 \|
Series:	K-Series
Material(s):	300 Stainless Steel, 302 Stainless Steel
Clamp Thickness:	0.031
Clamp Width:	0.625
Maximum Clamp I.D.:	7

Installation Tools:
Can be center punched or rolled over. Fast-Lok™ tools: F1, F40, F100 Super Strap Tools: 51960 screw action with 51970 adapter Bandit®: S100 air tool with S180 Jr. head, C-001 hand tool with J001 Jr. adapter, S350 air tool with S260 Jr. head, T-240 for 3/8" only or T-250 for 3/8" and 5/8", S-38 for 3/8" and 5/8", J-102 Pok-It™ for 3/8" only Punch-Lok® tools: P-1000 for 3/8" and 5/8", P-3000 for 3/8" only, P-38 for 3/8" and 5/8"
Materials:
On stainless clamps, bands are 300-series stainless steel, buckles are 302-series stainless steel.

Part Number	Material	Band Width	Clamp ID	Band Thickness
KS3	Stainless Steel	3/8"	13/16"	.025"
KS311	Stainless Steel	3/8"	1-3/8"	.025"
KS4	Stainless Steel	5/8"	1"	.030"
KS5	Stainless Steel	5/8"	1-1/4"	.030"
KS6	Stainless Steel	5/8"	1-1/2"	.030"
KS7	Stainless Steel	5/8"	1-3/4"	.030"
KS8	Stainless Steel	5/8"	2"	.030"
KS9	Stainless Steel	5/8"	2-1/4"	.030"
KS10	Stainless Steel	5/8"	2-1/2"	.030"
KS11	Stainless Steel	5/8"	2-3/4"	.030"
KS12	Stainless Steel	5/8"	3"	.030"
KS14	Stainless Steel	5/8"	3-1/2"	.030"
KS16	Stainless Steel	5/8"	4"	.030"
KS18	Stainless Steel	5/8"	4-1/2"	.030"
KS20	Stainless Steel	5/8"	5"	.030"
KS24	Stainless Steel	5/8"	6"	.030"
KS28	Stainless Steel	5/8"	7"	.030"
KS32	Stainless Steel	5/8"	8"	.030"

K3	Galvanized Steel	3/8"	13/16"	.025"
K311	Galvanized Steel	3/8"	1-3/8"	.025"
K4	Galvanized Steel	5/8"	1"	.031"
K5	Galvanized Steel	5/8"	1-1/4"	.031"
K6	Galvanized Steel	5/8"	1-1/2"	.031"
K7	Galvanized Steel	5/8"	1-3/4"	.031"
K8	Galvanized Steel	5/8"	2"	.031"
K9	Galvanized Steel	5/8"	2-1/4"	.031"
K10	Galvanized Steel	5/8"	2-1/2"	.031"
K11	Galvanized Steel	5/8"	2-3/4"	.031"
K12	Galvanized Steel	5/8"	3"	.031"
K14	Galvanized Steel	5/8"	3-1/2"	.031"
K16	Galvanized Steel	5/8"	4"	.031"
K18	Galvanized Steel	5/8"	4-1/2"	.031"
K20	Galvanized Steel	5/8"	5"	.031"
K24	Galvanized Steel	5/8"	6"	.031"
K28	Galvanized Steel	5/8"	7"	.031"
K32	Galvanized Steel	5/8"	8"	.031"
