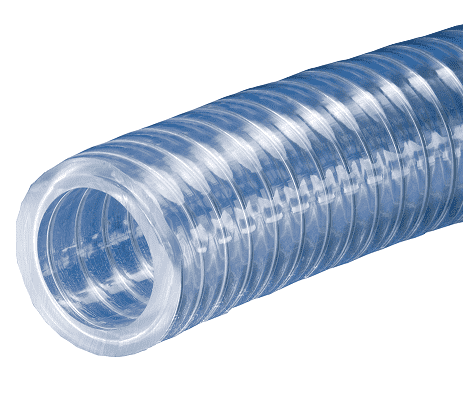

K7130-06X100 Kuri-Tec by Kuriyama | Polywire K7130 Series | Heavy Wall PVC | 100ft Length Food & Beverage Vacuum/Transfer Hose | 3/8" ID | .625" OD | PVC | 100ft Length

Save $48.24

$168.84

$168.84 - $168.84

$168.84

$120.60

$120.60 - $120.60

$120.60

Kuriyama Kuri Tec® POLYWIRE® Series K7130 Heavy Wall PVC Food & Beverage Vacuum/Transfer Hose Heavy wall food and beverage grade vacuum/transfer hose with rated working pressures.

Package Quantity: 100 FT

Specifications for Variant SKU: K7130-06X100 Kuriyama \| 100 \|
Brand:	Kuri Tec
Series:	K7130 Series
Hose Color(s):	Clear/Semi-Clear
Internal Diameter:	0.375in
Outer Diameter:	0.625in
Tubing Construction:	PVC
Cover Construction:	PVC
Applicable Specs & Approvals:	Applicable 3-A Sanitary Standards, Applicable FDA Requirements, Applicable NSF Requirements, Applicable USDA Requirements, RoHS Compliant, UL94HB Flammability Rating, USP - Class VI

SPECIFICATIONS

Other Features:
Application:	Full vacuum lines, Industrial vacuum pumps, Food & beverage dispensing, Air and water supply lines, Pneumatic parts transfer, Car wash applications, Coolant lines, Air breathing lines, Deionized water systems	SAE Rating:	N/A
Other Ratings:	N/A	Tube:	Crystal clear PVC compound, formulated with ingredients in compliance with applicable FDA(03) requirements, meets USDA(17), 3A(01), NSF(13), UL(16), USP(18) and RoHS(15) criteria.
Reinforcement:	Helically-wound spring steel wire	Cover:	N/A
Temperature Range:	+25 deg. F (-4 deg. C) to +150 deg. F (+65 deg. C)	Crimp Fittings:	N/A
Reusable Fittings:	N/A	Specifications	3A(01), FDA(03), NSF(13), RoHS(15), UL(16), USDA(17), USP(18)
29.9" HG vacuum rating. Spiral wire reinforcement prevents kinking or collapsing hose diameter will not expand under normal rated working pressures. Crystal clear - allows visual confirmation of product flow. Glass-smooth interior - reduces material buildup. Electrogalvanized helical steel wire can be used for static dissipation. Resistant to chemicals. Compound hardness 73±3 Shore "A". Self-extinguishing. Non-marking. Non-toxic. Silicone-free. One-piece lengths.

Part Number	Nominal ID		Nominal OD		Working Pressure		Standard Lengths	Approx Weight per Pkg	Min. Bend Radius
	(in.)	(mm)	(in.)	(mm)	@ 70 deg. F (20 deg. C) (PSI)	@ 122 deg. F (50 deg. C) (PSI)	Coils		@ 70 deg. F
K7130-04X100	1/4"	6.4mm	.500"	12.7mm	250 PSI	80 PSI	100 ft.	10 lbs.	1"
K7130-04X50	1/4"	6.4mm	.500"	12.7mm	250 PSI	80 PSI	50 ft.	5 lbs.	1"
K7130-06X100	3/8"	9.5mm	.625"	15.9mm	150 PSI	80 PSI	100 ft.	13 lbs.	1-1/2"
K7130-06X50	3/8"	9.5mm	.625"	15.9mm	150 PSI	80 PSI	50 ft.	6.5 lbs.	1-1/2"
K7130-08X100	1/2"	12.7mm	.813"	20.7mm	150 PSI	80 PSI	100 ft.	21 lbs.	2"
K7130-08X50	1/2"	12.7mm	.813"	20.7mm	150 PSI	80 PSI	50 ft.	10.5 lbs.	2"
K7130-10X100	5/8"	15.9mm	1.000"	25.4mm	150 PSI	65 PSI	100 ft.	30 lbs.	2-1/2"
K7130-10X50	5/8"	15.9mm	1.000"	25.4mm	150 PSI	65 PSI	50 ft.	15 lbs.	2-1/2"
K7130-12X100	3/4"	19.1mm	1.125"	28.6mm	150 PSI	65 PSI	100 ft.	36 lbs.	3"
K7130-12X50	3/4"	19.1mm	1.125"	28.6mm	150 PSI	65 PSI	50 ft.	18 lbs.	3"
K7130-16X100	1"	25.4mm	1.375"	34.9mm	100 PSI	50 PSI	100 ft.	44 lbs.	4"
K7130-16X50	1"	25.4mm	1.375"	34.9mm	100 PSI	50 PSI	50 ft.	22 lbs.	4"
K7130-20X50	1-1/4"	31.8mm	1.750"	44.5mm	100 PSI	50 PSI	50 ft.	37 lbs.	5"
K7130-24X50	1-1/2"	38.1mm	2.000"	50.8mm	100 PSI	35 PSI	50 ft.	42 lbs.	6"
K7130-32X50	2"	50.8mm	2.500"	63.5mm	100 PSI	35 PSI	50 ft.	56 lbs.	8"

Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Use of compression fittings with Kuri Tec(registered trademark) yarn-reinforced hose is not recommended. Hose claims involving use of these fittings will be disallowed. CAUTION: This product is designed to dissipate static electricity when the metal wire is properly connected to ground, through the fitting or other means.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
