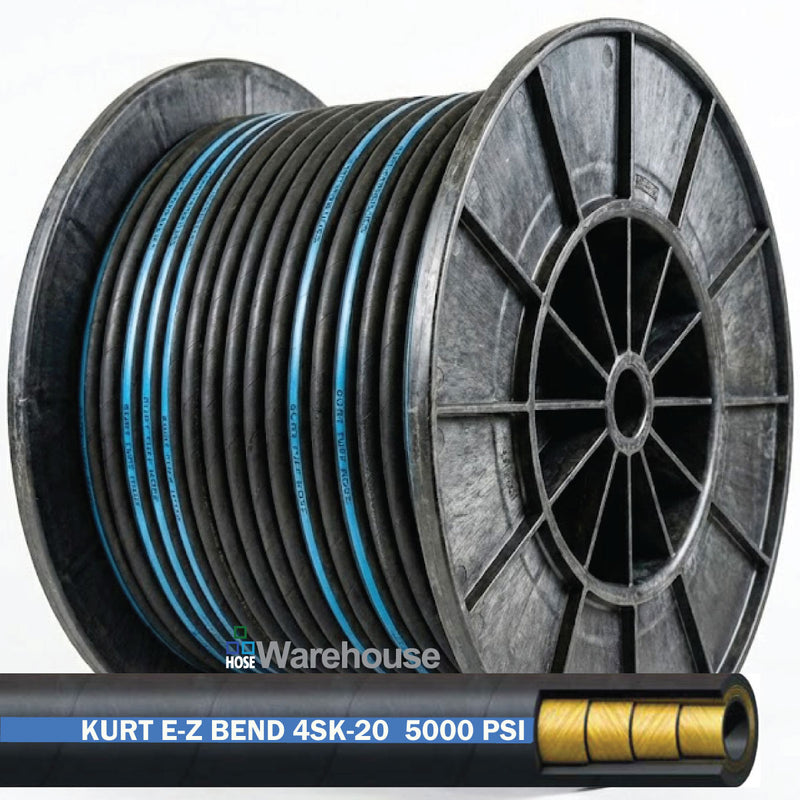

4SK-20 by Kurt Hydraulics | 4 Spiral High Pressure Hydraulic Hose | 5000 PSI | 1-1/4" I.D. | 200ft Reel
4SK-20 by Kurt Hydraulics | 4 Spiral High Pressure Hydraulic Hose | 5000 PSI | 1-1/4" I.D. | 200ft Reel

4SK-20 by Kurt Hydraulics | 4 Spiral High Pressure Hydraulic Hose | 5000 PSI | 1-1/4" I.D. | 200ft Reel

Save $1,955.55 Save $1,955.55
$4,888.88
$4,888.88 - $4,888.88
$4,888.88
$2,933.33
$2,933.33 - $2,933.33
$2,933.33

by Kurt Hydraulics
4 Spiral High Pressure Hydraulic Hose

Reel length may very, underages will be refunded to the customer.

Package Quantity: 200 FT

Specifications for Variant SKU: 4SK-20 Kurt | 200 |
Series: 4SK Series
Hose Color(s): Black
Internal Diameter: 1-1/4in
Outer Diameter: 1.79in
Tubing Construction: Synthetic Rubber
Cover Construction: Synthetic Rubber
Hose Properties:
Recommended for: High pressure hydraulic oil lines Tube: Oil resistant synthetic rubber
Temperature Range: -40°F to +212°F Reinforcement: Four spiral layers of high tensile steel wire braid
Other Qualifications: Meets flame resistant MSHA designation Cover: Abrasion, ozone and weather resistant synthetic rubber
Part Number Hose I.D. Hose O.D. Rated W.P.
(psi)		 Min. Burst
(psi)		 Min. Bend
(in)		 Coupling Series
4SK-10 5/8" 1.07" 6,000 24,000 4.00" W
4SK-12 3/4" 1.27" 6,000 24,000 4.7" W, WHP
4SK-16 1" 1.52" 5,500 22,000 5.9" W, WHP
4SK-20 1-1/4" 1.79" 5,000 20,000 9" W

Industries: Agriculture, Construction, Industrial, Logging, Marine, Mining, Mobile Equipment, Oil & Gas

Kurt Hydraulics

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
