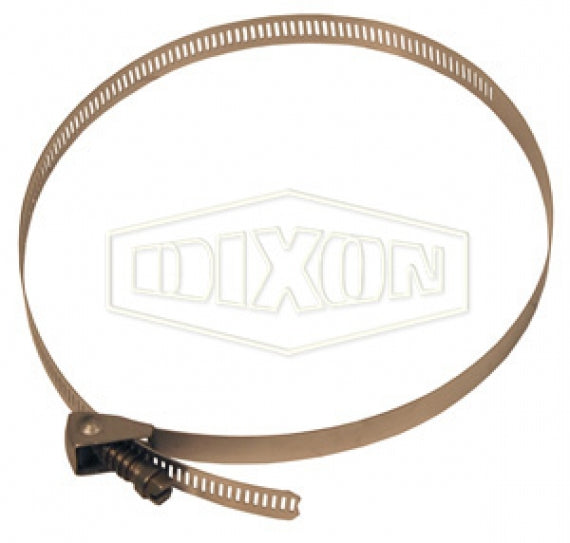

LSS216 by Dixon Valve | Style LSS | Quick-Release Worm Gear Clamp | 1/2" Band Width | Hose OD Range: from 10-3/16" to 14" | 201 Stainless Steel Band | 410 Stainless Steel Screw

Save $0.73

$7.77

$7.77 - $7.77

$7.77

$7.04

$7.04 - $7.04

$7.04

Dixon Valve
Quick-Release Worm Gear Clamps | Style LSS

Quantity

Specifications for Variant SKU: LSS216 Dixon
Series:	Style LSS
Material(s):	201 Stainless Steel, 410 Stainless Steel
Clamp Width:	0.5
Minimum Clamp I.D.:	10.1875
Maximum Clamp I.D.:	14

Features:
Screw design: 5/16" slotted hex head. Suggested installation torque 25-35 in. lbs., maximum recommended torque 50 in. lbs. Torque ratings correspond to the torque rating of the screw of the clamp and are not an indication of the working pressure of any hose assembly installed with this clamp.
Materials:
Band and housing: 201-series stainless. Style LS Screw: plated hardened carbon steel. Style LSS Screw: SAE 410-series stainless.

Part Number Style LS	Part Number Style LSS	Band Width	Hose OD
Part Number Style LS	Part Number Style LSS	Band Width	From	To
LS48	LSS48	1/2"	1-1/2"	3-1/2"
LS56	-	1/2"	1"	4"
LS72	LSS72	1/2"	2"	5"
LS88	LSS88	1/2"	2"	6"
LS96	-	1/2"	3-1/2"	6-1/2"
LS104	LSS104	1/2"	2-7/8"	7"
LS128	LSS128	1/2"	1-3/4"	8-1/2"
LS152	-	1/2"	2"	10"
LS188	LSS188	1/2"	2"	12-1/4"
-	LSS216	1/2"	10-3/16"	14"
-	LSS248	1/2"	1-3/4"	16"
-	LSS312	1/2"	1-7/8"	20"
