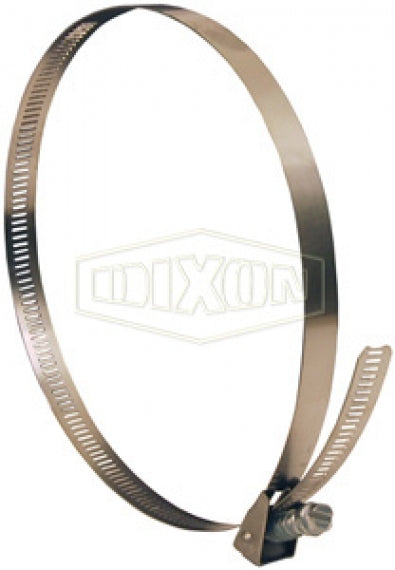

LS96 by Dixon Valve | Style LS | Quick-Release Worm Gear Clamp | 1/2" Band Width | Hose OD Range: from 3-1/2" to 6-1/2" | 201 Stainless Steel Band | Plated Hardened Carbon Steel Screw

Save $2.40

$6.00

$6.00 - $6.00

$6.00

$3.60

$3.60 - $3.60

$3.60

Dixon Valve
Quick-Release Worm Gear Clamps | Style LS

Specifications for Variant SKU: LS96 Dixon
Series:	Style LS
Material(s):	201 Stainless Steel, Carbon Steel
Clamp Width:	0.5
Minimum Clamp I.D.:	3.5
Maximum Clamp I.D.:	6.5625

Features:
Screw design: 5/16" slotted hex head. Suggested installation torque 25-35 in. lbs., maximum recommended torque 50 in. lbs. Torque ratings correspond to the torque rating of the screw of the clamp and are not an indication of the working pressure of any hose assembly installed with this clamp.
Materials:
Band and housing: 201-series stainless. Style LS Screw: plated hardened carbon steel. Style LSS Screw: SAE 410-series stainless.

Part Number Style LS	Part Number Style LSS	Band Width	Hose OD
Part Number Style LS	Part Number Style LSS	Band Width	From	To
LS48	LSS48	1/2"	1-1/2"	3-1/2"
LS56	-	1/2"	1"	4"
LS72	LSS72	1/2"	2"	5"
LS88	LSS88	1/2"	2"	6"
LS96	-	1/2"	3-1/2"	6-1/2"
LS104	LSS104	1/2"	2-7/8"	7"
LS128	LSS128	1/2"	1-3/4"	8-1/2"
LS152	-	1/2"	2"	10"
LS188	LSS188	1/2"	2"	12-1/4"
-	LSS216	1/2"	10-3/16"	14"
-	LSS248	1/2"	1-3/4"	16"
-	LSS312	1/2"	1-7/8"	20"
