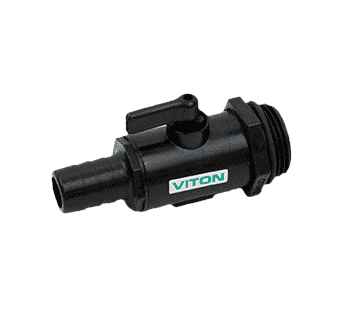

LVHB075100MTV Banjo Polypropylene Micro Valve - 3/4" Hose Barb x 1" Male NPT - Opening Thru Ball: 15/32" - 300 PSI

LVHB075100MTV by Banjo | Micro Valve | 3/4" Hose Barb x 1" Male NPT | Opening Thru Ball: 15/32" | 300 PSI | Polypropylene | Pack of 10

Save $23.38 Save $23.38
$210.45
$210.45 - $210.45
$210.45
$187.07
$187.07 - $187.07
$187.07

Banjo Valves
Micro Valves - Polypropylene - Hose Barb x Male NPT

Package Quantity: 10 EA

Specifications for Variant SKU: LVHB075100MTV Banjo | 10 |
Shape (Orientation): Straight
Ends Configuration: 3/4in Hose Barb, 1in Male NPT
Material(s): Polypropylene
Seal Material(s): PTFE
Applications:
  • Fluids
Features:
  • 90° rotating handle
  • Precision molded polypropylene is reinforced with fiberglass for additional strength.
  • Standard FKM (viton type) seats and O-rings.
  • Maximum operating pressure 300 PSI
Part Number Hose Barb Male NPT Opening Thru Ball Max PSI
LVHB038050MTV 3/8" 1/2" 3/8" 300 PSI
LVHB075MTV 3/4" 3/4" 1/2" 300 PSI
LVHB075100MTV 3/4" 1" 15/32" 300 PSI
LVHB075100MTLV* 3/4" 1" 15/32" 300 PSI

* With Locking Handle

Banjo

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
