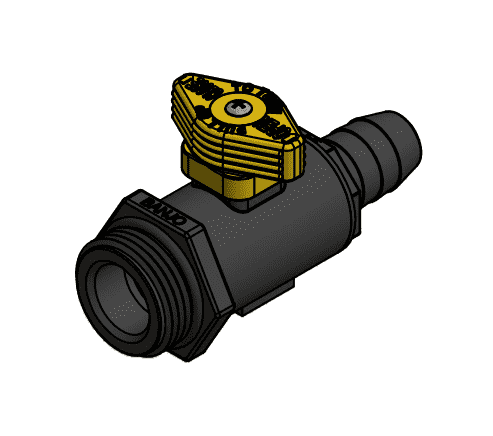

LVHB075100MTLV Banjo 3/4" Hose Barb x 1" MNPT Micro Valve Locking Handle

LVHB075100MTLV by Banjo | Micro Valve | 3/4" Hose Barb x 1" MNPT Micro Valve Locking Handle | 300 PSI | Pack of 10

Save $17.17 Save $17.17
$254.37
$254.37 - $254.37
$254.37
$237.20
$237.20 - $237.20
$237.20

Banjo Valves
Micro Valves - Polypropylene - Hose Barb x Male NPT

Package Quantity: 10 EA

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: LVHB075100MTLV Banjo | 10 |
Shape (Orientation): Straight
Ends Configuration: 1in Male NPT, 3/4in Hose Barb
Material(s): Polypropylene
Seal Material(s): Viton/FKM
Applications:
  • Fluids
Features:
  • 90° rotating handle
  • Precision molded polypropylene is reinforced with fiberglass for additional strength.
  • Standard FKM (viton type) seats and O-rings.
  • Maximum operating pressure 300 PSI
Part Number Hose Barb Male NPT Opening Thru Ball Max PSI
LVHB038050MTV 3/8" 1/2" 3/8" 300 PSI
LVHB075MTV 3/4" 3/4" 1/2" 300 PSI
LVHB075100MTV 3/4" 1" 15/32" 300 PSI
LVHB075100MTLV* 3/4" 1" 15/32" 300 PSI

* With Locking Handle

Banjo

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
