M-DL08-12-18-W by Kurt Hydraulics | Male DIN Light 24 Degree Seat | Rigid | for 1/2" Hose ID

Name: M-DL08-12-18-W by Kurt Hydraulics | Male DIN Light 24 Degree Seat | Rigid | for 1/2" Hose ID
Brand: Kurt Hydraulics
SKU: M-DL08-12-18-W Kurt
Price: 15.41 USD
Availability: InStock

Save $1.93

$17.34

$17.34 - $17.34

$17.34

$15.41

$15.41 - $15.41

$15.41

by Kurt Hydraulics
M-DL-W - Din Heavy 24 deg. Seat Male Rigid

Kurt Fittings and Hose should only be used together.

Quantity

Specifications for Variant SKU: M-DL08-12-18-W Kurt
Shape (Orientation):	Straight
Ends Configuration:	1/2in Hose Barb, L18 Male DIN
Special Properties:	Rigid

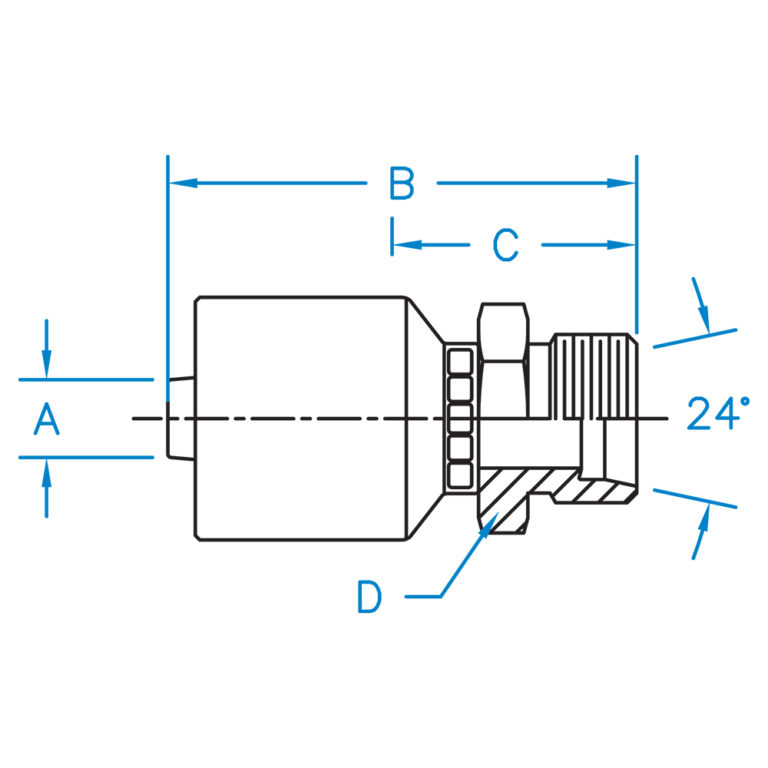

Part Number	A	B	C	D	Hose ID (In)	Thread
M-DL06-12-18-W	0.375	2.392	1.022	3/4	3/8"	M18 X 1.5
M-DL06-15-22-W	0.375	2.427	1.057	7/8	3/8"	M22 X 1.5
M-DL08-12-18-W	0.500	2.417	1.077	7/8	1/2"	M18 X 1.5
M-DL08-15-22-W	0.500	2.452	1.112	7/8	1/2"	M22 X 1.5
M-DL10-18-26-W	0.625	3.252	1.152	1-1/16	5/8"	M26 X 1.5
M-DL12-22-30-W	0.750	3.095	1.216	1-3/16	3/4"	M30 X 2.0
M-DL16-28-36-W	1.000	3.441	1.316	1-1/2	1.000"	M36 X 2.0

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
