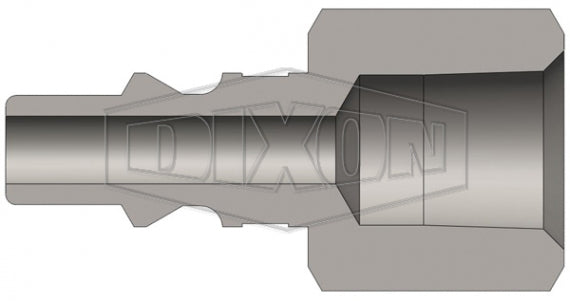

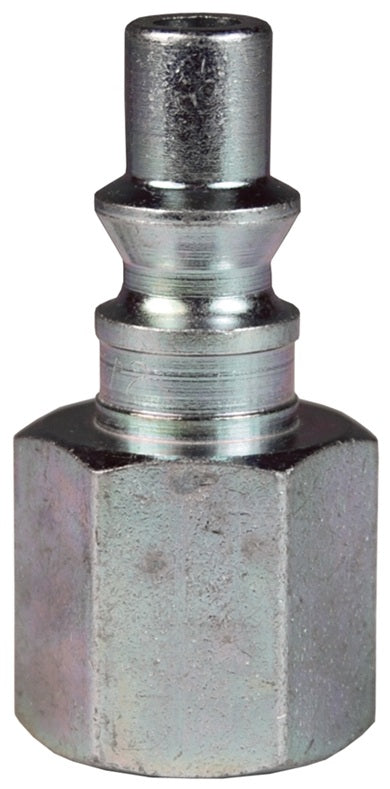

M3F3 by Dixon Valve | Pneumatic Quick Disconnect Coupling | M-Series | 3/8" Female NPTF x 3/8" ARO Interchange | Plug | Steel

Save $0.63

$7.44

$7.44 - $7.44

$7.44

$6.81

$6.81 - $6.81

$6.81

Dixon Valve & Coupling
Pneumatic Coupling: M-Series ARO Interchange Plug (Female Threads)

Quantity

Specifications for Variant SKU: M3F3 Dixon
Series:	M-Series
Shape (Orientation):	Straight
Ends Configuration:	3/8in Male ARO 210 QD Interchange, 3/8in Female NPTF
Material(s):	Steel

Compatibility & Interchange:	Automatic couplings interchange with ARO 210/310 and Hansen 210/310 Manual Couplings Interchange with Parker 50-Series and Amflow Type 'B'
Construction:	Machined components are manufactured using solid bar stock. Steel componentry is plated using ROHS Compliant Trivalent Chrome.
Safety Notes:	It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
Additional Information:	For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF

M-Series \| ARO Interchange Plug (Female Threads)

Part Number	Coupling Type	Body Size	Threads	Material	Length	Maximum OD	Hex	Working Pressure / Burst Pressure when Connected to:
M2F2	Plug/Male	1/4"	1/4" - 18 Female NPTF	Steel	1.57" (39.9mm)	0.79" (20.1mm)	11/16"	Auto Steel Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) \| Burst: 2,600 PSI (179 bar) Manual Steel Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) \| Burst: 12,400 PSI (855 bar)
M2F2-B	Plug/Male	1/4"	1/4" - 18 Female NPTF	Brass	1.57" (39.9mm)	0.79" (20.1mm)	11/16"	Auto Brass Coupler & Brass Plug: Max. Working: 300 PSI (20 bar) \| Burst: 5,000 PSI (345 bar) Manual Brass Coupler & Brass Plug: Max. Working: 300 PSI (20 bar) \| Burst: 12,700 PSI (876 bar)
M2F3	Plug/Male	1/4"	3/8" - 18 Female NPTF	Steel	1.57" (39.9mm)	1.01" (25.7mm)	7/8"	Auto Steel Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) \| Burst: 2,600 PSI (179 bar) Manual Steel Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) \| Burst: 12,400 PSI (855 bar)
M3F3	Plug/Male	3/8"	3/8" - 18 Female NPTF	Steel	1.82" (46.2mm)	1.01" (25.7mm)	7/8"	Auto Steel Coupler & Steel Plug: Max. Working: 300 PSI (20 bar) \| Burst: 3,300 PSI (228 bar)
